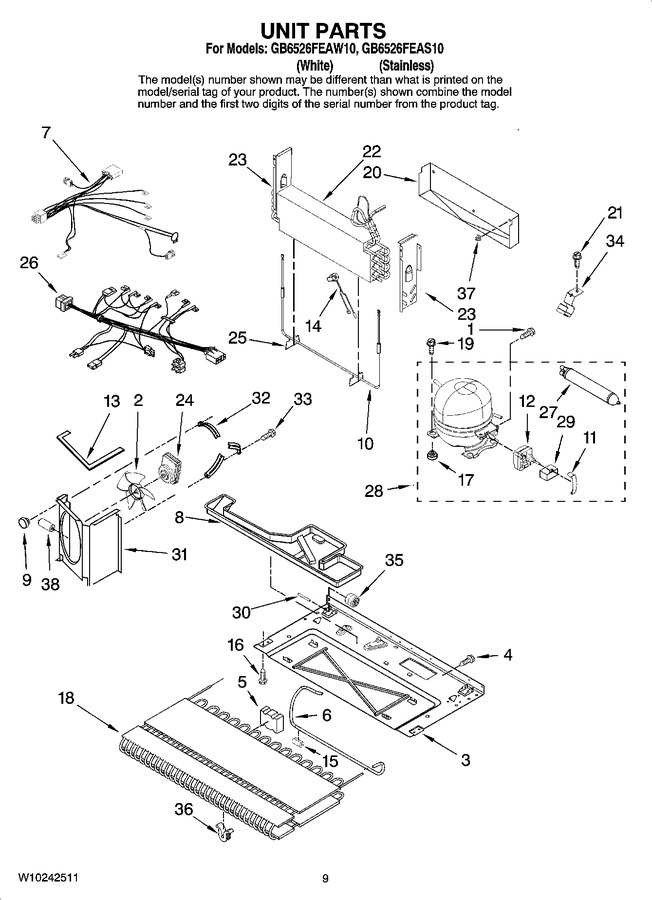

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw   (Replaces: 67006433)				$ 7.32
2	W10156818		Blade, Cond. Fan   (Replaces: W10162928)			Immediately	$ 62.11
3	67005744		Basepan		Appelez-nous	-
4	67006425		Screw			Immediately	$ 6.95
5	67005491		Block, Condenser		Appelez-nous	-
6	67004262		Tube, Discharge		Appelez-nous	-
7	W10169651		Harness, Evap. Heater		Appelez-nous	-
8	67004713		Pan, Drain		Appelez-nous	-
9	61004743		Grommet (3)				$ 5.51
10	12729119		Heater, Defrost		Appelez-nous	-
11	67007052		Clip, Capacitor		Appelez-nous	-
12	2303344		Start Device (service)		Appelez-nous	-
12	W10848274		Relay W/capacitor (production)   (Replaces: 67006453)				$ 177.00
13	WP854334		Gasket   (Replaces: 61003210)				$ 13.28
14	W11084905		Thermostat, Defrost   (Replaces: 12639322SP)		Appelez-nous	-
15	67005680		Grommet (2)				$ 21.05
16	12992101		Screw   (Replaces: 67006573)		Appelez-nous	-
17	WPW10169124		Grommet (4)   (Replaces: 67003493)			Immediately	$ 7.19
18	WP67006132		Condenser   (Replaces: 67006132)				$ 304.52
19	12846902		Screw   (Replaces: 67006432)				$ 12.99
20	WPW10292802		Tray, Drip   (Replaces: 67001080)				$ 176.74
21	WP33001882		Screw   (Replaces: 67006737)				$ 79.72
22	12002051		Evaporator Kit (incl. Evap., Heat Shield, & Instr. Sheet)				$ 323.54
23	67001084		Dam (right Side)		Appelez-nous	-
23	67001083		Dam (left Side)		Appelez-nous	-
24	WPW10246191		Motor, Cond. Fan   (Replaces: W10211284)				$ 302.28
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 141.12
26	W10169655		Harness, Unit		Appelez-nous	-
27	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 30.78
28	12049773		Compressor (includes Items 12,17,27,29)		Appelez-nous	-
29	WP2201147		Capacitor   (Replaces: 67007162)				$ 128.97
30	67006434		Axle, Roller (2)			Immediately	$ 7.52
31	12575310		Shroud		Appelez-nous	-
32	WP67004953		Bracket, Fan Motor   (Replaces: 67004953)				$ 68.83
33	WP67004954		Screw   (Replaces: 67004954)				$ 7.79
34	10547003		Clip, Drier		Appelez-nous	-
35	WP67005149		Roller (2)   (Replaces: 67005149)			Immediately	$ 22.02
36	WPW10137529		Grommet, Cond. (4)   (Replaces: W10137529)				$ 8.34
37	10623002		Clip, Evaporator				$ 11.53
38	12689303SP		Filter, Line		Appelez-nous	-
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
