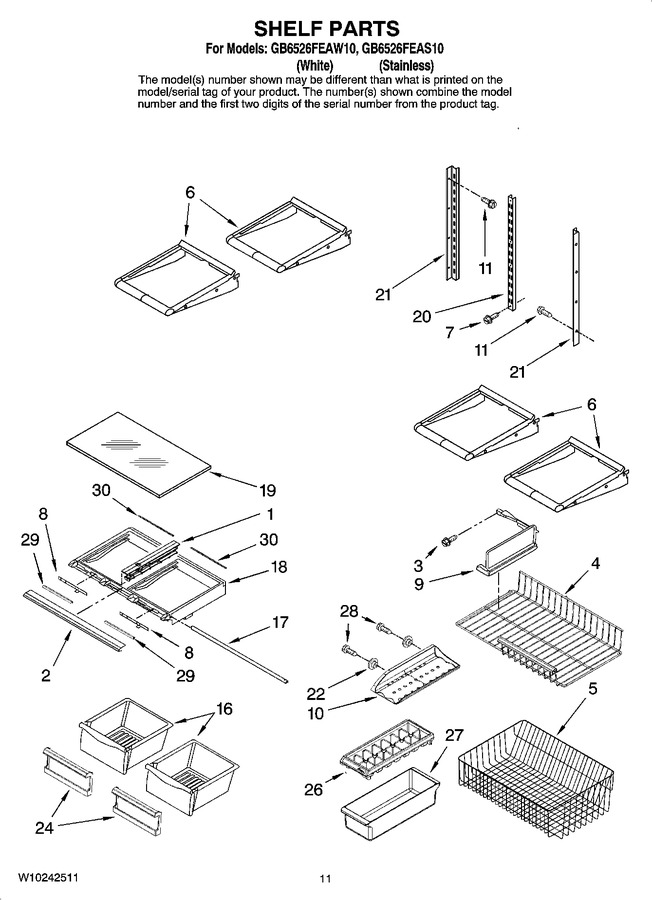

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: 67001057) |
|
Immediately | $ 118.46 | ||||
| 2 | W10656985 | Trim, Crisper (Replaces: 67001913) |
|
$ 137.68 | |||||
| 3 | 67006608 | Screw |
|
- | |||||
| 4 | 67006230 | Shelf, Fz Glide |
|
$ 64.98 | |||||
| 5 | W10143566 | Basket, Freezer (lower) |
|
- | |||||
| 6 | 67003703 | Shelf, Stat (4) |
|
- | |||||
| 7 | W10709795 | Screw (Replaces: 67006360) |
|
$ 13.79 | |||||
| 8 | WP67005864 | Slide, Humidity Control (Replaces: 67005864) |
|
Immediately | $ 8.20 | ||||
| 9 | 67004127 | Divider, Basket (upper) |
|
$ 10.10 | |||||
| 10 | 12646501 | Rack, Ice Tray |
|
- | |||||
| 11 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 16 | WP67002633 | Pan, Crisper (Replaces: 67002633) |
|
Immediately | $ 149.12 | ||||
| 17 | WP12227303WD | Brace, Crisper (Replaces: 67001059) |
|
$ 111.25 | |||||
| 18 | WPW10568041 | Frame, Crisper (Replaces: 67001056) |
|
Immediately | $ 137.23 | ||||
| 19 | WP67006878 | Glass, Crisper Cover (Replaces: 67006878) |
|
Immediately | $ 185.19 | ||||
| 20 | 67001073 | Ladder, Center |
|
$ 56.89 | |||||
| 21 | 67001317 | Ladder, Side |
|
$ 39.13 | |||||
| 22 | 10972101 | Spacer, Ice Rack |
|
$ 7.82 | |||||
| 24 | 12643702 | Front Crisper Pan (Replaces: 67005907) |
|
Immediately | $ 43.97 | ||||
| 26 | WP841180A | Tray, Ice (Replaces: D7725402S) |
|
Immediately | $ 47.84 | ||||
| 27 | 10423131 | Bin, Utility |
|
$ 31.13 | |||||
| 28 | WP67006908 | Screw, Spacer (Replaces: 67006908) |
|
Immediately | $ 8.78 | ||||
| 29 | 67001063 | Seal, Frnt Crisper |
|
$ 38.97 | |||||
| 30 | 67001768 | Seal, Rear Crisper |
|
$ 9.45 |
