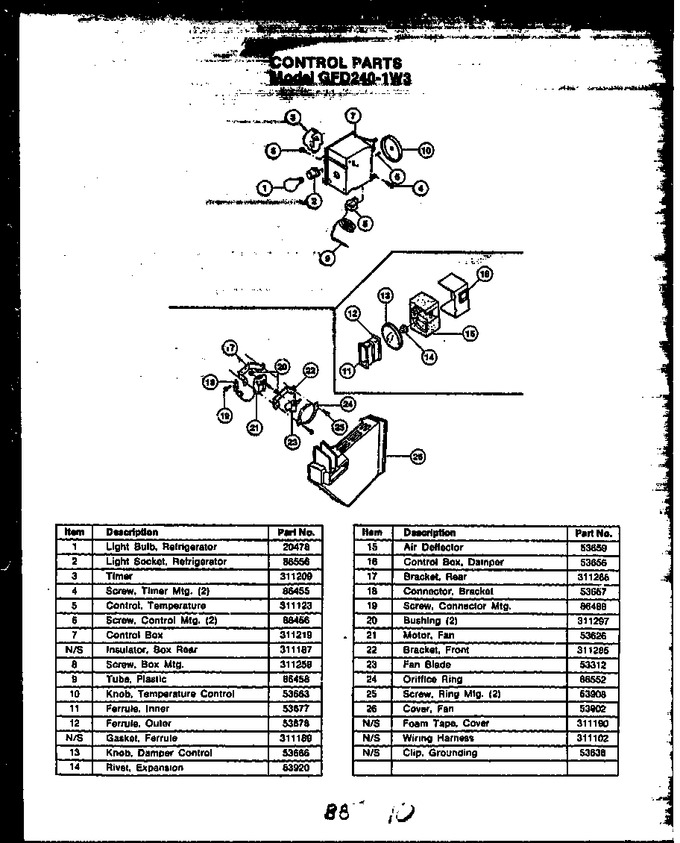

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8009		Bulb - Light   (Replaces: 20478)			Immediately	$ 17.51
2	Y0086556		Socket, Light		Appelez-nous	-
3	Y0311209		Timer, Defrost		Appelez-nous	-
4	Y0086455		Screw		Appelez-nous	-
5	Y0311123		Thermostat		Appelez-nous	-
6	Y0086456		Screw		Appelez-nous	-
7	311219		Control Box		Appelez-nous	-
8	311258		Screw, Box Mtg.		Appelez-nous	-
9	Y0086458		Tube Plastic		Appelez-nous	-
10	Y0053663		Knob, Cold Control		Appelez-nous	-
11	Y0053677		Ferrule, Inner		Appelez-nous	-
12	Y0053678		Ferrule, Outer		Appelez-nous	-
13	Y0053666		Knob, Damper Control		Appelez-nous	-
14	0053920		Rivet, Plastic, Knob Ret.		Appelez-nous	-
15	Y0053659		Deflector, Air		Appelez-nous	-
16	Y0053656		Box, Damper Control		Appelez-nous	-
17	Y311286		Bracket, Rear		Appelez-nous	-
18	Y0053657		Bracket, Connector		Appelez-nous	-
19	Y0086488		Screw		Appelez-nous	-
20	Y311297		Bushing		Appelez-nous	-
21	0053626		Motor, Blower		Appelez-nous	-
22	311285		Bracket, Front		Appelez-nous	-
23	Y0053312		Fan		Appelez-nous	-
24	86552		Ring - Fan Orifice				$ 95.76
25	WP67006908		Screw   (Replaces: Y0053908)			Immediately	$ 7.90
26	53902		Cover-fan		Appelez-nous	-
NI	311187		Insulator, Box Rear		Appelez-nous	-
NI	Y0053636		Clip-ground		Appelez-nous	-
NI	311102		Wiring Harness		Appelez-nous	-
NI	Y311190		Foam, Tape, Cover		Appelez-nous	-
NI	Y311189		Gasket, Ferrule		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
