SELECT A DIAGRAM

01 - Cabinet Parts


02 - Control Parts


03 - Ice Dispenser


04 - Ice Door


05 - Ice Maker Parts


06 - Page 1


07 - Ref Door Parts


08 - Shelving


09 - Unit Parts

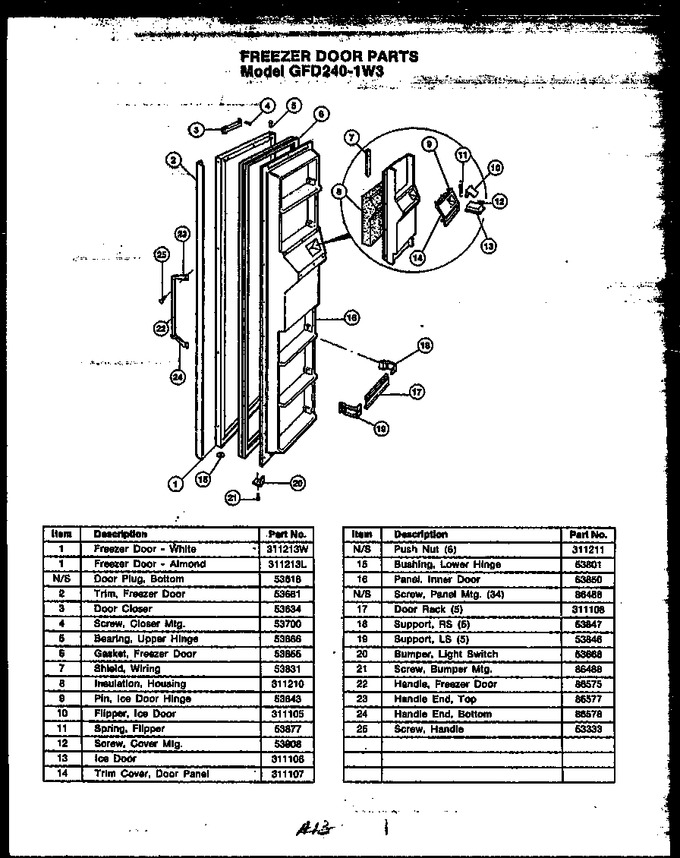

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311213L		Sub 56168l, Freezer Dr. Panel		Appelez-nous	-
1	311213W		Panel, Door		Appelez-nous	-
2	53681		Code J		Appelez-nous	-
3	0053634		Closer, Door		Appelez-nous	-
4	Y0053700		Screw, Door Closer		Appelez-nous	-
5	0053866		Bearing, Hinge		Appelez-nous	-
6	Y0053855		Gasket, Door		Appelez-nous	-
7	Y0053831		Shield, Wire		Appelez-nous	-
8	0311210		Insulation, Housing		Appelez-nous	-
9	0053843		Pin, Ice Door		Appelez-nous	-
10	0311105		X Ice Door Flipper		Appelez-nous	-
11	Y0053877		Spring, Flipper Retainer		Appelez-nous	-
12	WP67006908		Screw   (Replaces: Y0053908)			Immediately	$ 7.90
13	Y0311106		Ice Door		Appelez-nous	-
14	Y0311107		Trim Cover		Appelez-nous	-
15	0053801		Bushing, Hinge		Appelez-nous	-
16	53850		Panel, Inner Door		Appelez-nous	-
17	Y0311108		Rack, Door		Appelez-nous	-
18	0053847		Support, Rack, Rh		Appelez-nous	-
19	Y0053846		Support, Rack, Lh		Appelez-nous	-
20	Y0053668		Bumper, Light Switch		Appelez-nous	-
21	Y0086488		Screw		Appelez-nous	-
22	86575		Grip - Handle Fz				$ 97.41
23	0086577		Handle, End		Appelez-nous	-
24	0086578		End, Handle Bottom		Appelez-nous	-
25	Y0053333		Screw, Handle		Appelez-nous	-
NI	Y311211		Nut, Self Threading		Appelez-nous	-
NI	Y0086488		Screw		Appelez-nous	-
NI	Y0053618		Button Plug, Door Stop Mtghole		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
