01 - Cabinet Parts
02 - Control Parts
03 - Ice Dispenser
04 - Ice Door
05 - Ice Maker Parts
06 - Page 1
07 - Ref Door Parts
08 - Shelving
09 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

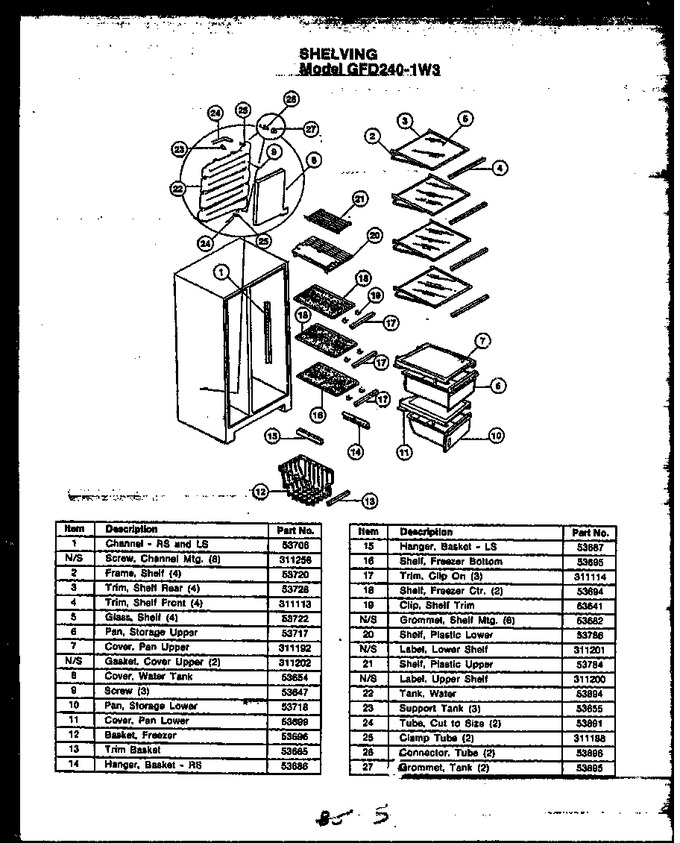

| 1 | Y0053706 | Channel, Shelf Mounting |
|
- | |||||
| 2 | Y0053720 | Frame, Cantilever Shelf |
|
- | |||||
| 3 | Y0053728 | Trim, Rear Shelf |
|
- | |||||
| 4 | Y0311113 | Trim Shelf Front |
|
- | |||||
| 5 | Y0053722 | Shelf, Glass |
|
- | |||||
| 6 | 53717 | Pan-storage Upper |
|
- | |||||
| 7 | 0311192 | Sub 53698, Cover, Pan Upper |
|
- | |||||
| 8 | Y0053654 | Cover, Water Tank |
|
- | |||||
| 9 | Y0053647 | Screw No.8 X 3/4 |
|
- | |||||
| 10 | Y0053718 | Pan, Storage, Lower |
|
- | |||||
| 11 | Y0053699 | Cover, Crisper, Lower |
|
- | |||||
| 12 | 53696 | Manual, Operation |
|
- | |||||
| 13 | Y0053685 | Trim, Basket |
|
- | |||||
| 14 | Y0053686 | Hanger, Basket, Rh |
|
- | |||||
| 15 | Y0053687 | Hanger, Basket, Lh |
|
- | |||||
| 16 | Y0053695 | Shelf, Bottom, Freezer |
|
- | |||||
| 17 | Y0311114 | Trim Clip On |
|
- | |||||
| 18 | Y0053694 | Shelf, Center, Freezer |
|
- | |||||
| 19 | Y0053641 | Clip, Shelf Trim |
|
- | |||||
| 20 | Y0053786 | Shelf, Lower |
|
- | |||||
| 21 | Y0053784 | Shelf, Half, Upper |
|
- | |||||
| 22 | 53894 | Tank-water Cooler |
|
- | |||||
| 23 | Y0053655 | Support, Water Tank |
|
- | |||||
| 24 | WPB5705307 | Tubing Plastic (Replaces: Y0053891) |
|
$ 11.75 | |||||
| 25 | Y311188 | Clamp Tube |
|
- | |||||
| 26 | Y0053896 | Connector Tube |
|
- | |||||
| 27 | 53895 | Grommet-water Tube |
|
- | |||||
| NI | Y0053682 | Grommet, Freezer Shelf |
|
- | |||||
| NI | 311200 | Label, Upper Shelf |
|
- | |||||
| NI | 311201 | Label, Lower Shelf |
|
- | |||||
| NI | Y311202 | Gasket, Cover Upper |
|
- | |||||
| NI | 311258 | Screw, Box Mtg. |
|
- |
