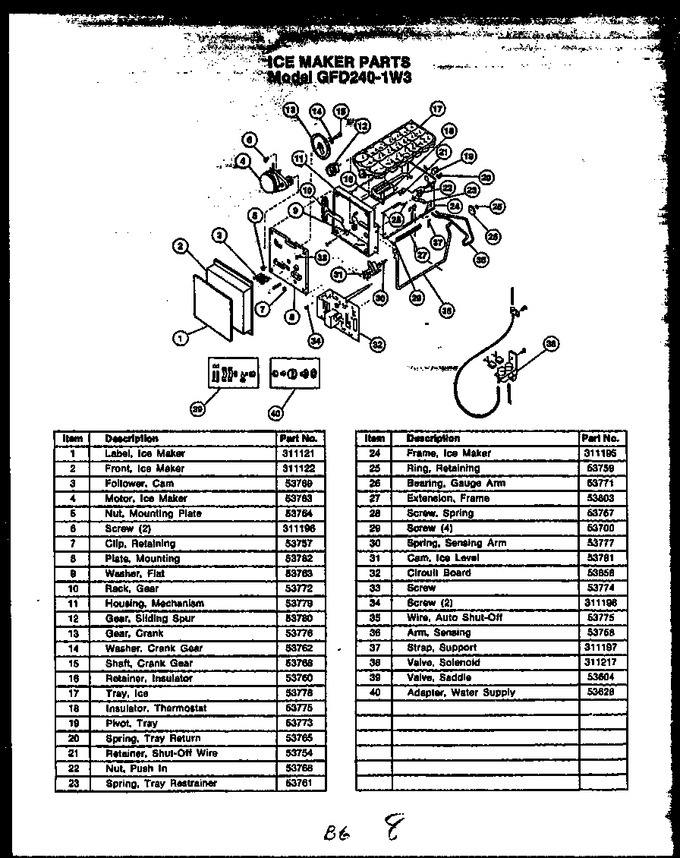

GFD240-1L3 (BOM: GFD24001L 3) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	Y0311121	Label, Ice Maker	Appelez-nous	-
2	Y0311122	Front, Ice Maker	Appelez-nous	-
3	Y0053769	Follower, Cam	Appelez-nous	-
4	0053783	Use 0313045	Appelez-nous	-
5	Y0053764	Nut, Mounting Plate	Appelez-nous	-
6	Y311196	Screw	Appelez-nous	-
7	Y0053757	Ring, Retaining	Appelez-nous	-
8	53782	Plate-mounting	Appelez-nous	-
9	Y0053763	Washer, Flat	Appelez-nous	-
10	0053772	Rack, Gear	Appelez-nous	-
11	0053779	Housing Mechanism	Appelez-nous	-
12	Y0053780	Gear, Sliding Spur	Appelez-nous	-
13	Y0053776	Gear, Crank	Appelez-nous	-
14	Y0053762	Washer, Crank Gear Shaft	Appelez-nous	-
15	55882	Assy, Switch (Replaces: 53768)		Immediately	$ 61.79
16	Y0053760	Retainer, Insulator	Appelez-nous	-
17	0053778	Tray, Ice	Appelez-nous	-
18	Y0053775	Insulator, Thermostat	Appelez-nous	-
19	53773	Pivot-tray	Appelez-nous	-
20	Y0053765	Spring, Tray Return	Appelez-nous	-
21	Y0053754	Retainer, Shut-off Wire	Appelez-nous	-
22	55882	Assy, Switch (Replaces: 53768)		Immediately	$ 61.79
23	Y0053761	Spring, Tray Restrainer	Appelez-nous	-
24	Y311195	Frame, Ice Maker	Appelez-nous	-
25	Y0053759	Ring, Retaining	Appelez-nous	-
26	Y0053771	Bearing, Gauge Arm	Appelez-nous	-
27	Y0053803	Extension, Frame	Appelez-nous	-
28	0053767	Screw, Spring	Appelez-nous	-
29	Y0053700	Screw, Door Closer	Appelez-nous	-
30	53777	Spring-sensing Arm	Appelez-nous	-
31	Y0053781	Cam, Ice Level	Appelez-nous	-
32	0053858	Pc Board, Thermistor	Appelez-nous	-
33	Y0053774	Screw	Appelez-nous	-
34	Y311196	Screw	Appelez-nous	-
35	Y0053775	Insulator, Thermostat	Appelez-nous	-
36	53758	Valve,gas-dual Input	Appelez-nous	-
37	Y311197	Strap, Support	Appelez-nous	-
38	Y0311217	Valve, Solenoid	Appelez-nous	-
39	Y0053604	Ice Maker Household Hook Up	Appelez-nous	-
40	53628	Panel Support Plate	Appelez-nous	-
