01 - Cabinet Parts


02 - Control Parts


03 - Ice Dispenser


04 - Ice Door


05 - Ice Maker Parts


06 - Page 1


07 - Ref Door Parts


08 - Shelving


09 - Unit Parts

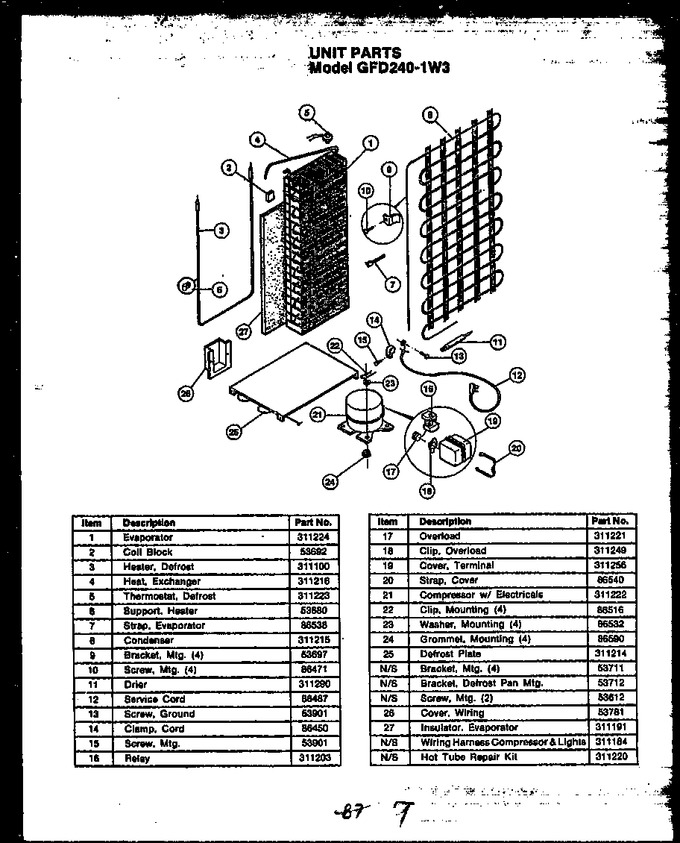

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0311224		Kit, Evap. Patch		Appelez-nous	-
2	Y0053692		Block, Coil		Appelez-nous	-
3	Y0311100		Heater, Defrost		Appelez-nous	-
4	Y0311216		Thermostat, Defrost		Appelez-nous	-
5	Y0311223		Heat Exchanger		Appelez-nous	-
6	Y0053680		Support, Defrost Heater		Appelez-nous	-
7	Y0086538		Clamp, Heater		Appelez-nous	-
8	Y311215		Condenser		Appelez-nous	-
9	53697		Bracket		Appelez-nous	-
10	Y0086471		Screw Clamp		Appelez-nous	-
11	WPB2150504		Sub 54342, Drier   (Replaces: Y0311290)				$ 123.28
12	Y0086487		Service Cord		Appelez-nous	-
13	67006425		Screw, Sm   (Replaces: Y0053901)			Immediately	$ 6.57
14	Y0086450		Clamp Cover		Appelez-nous	-
15	67006425		Screw, Sm   (Replaces: Y0053901)			Immediately	$ 6.57
16	Y311203		Relay		Appelez-nous	-
17	Y0311221		Overload		Appelez-nous	-
18	Y311249		Clip, Overload		Appelez-nous	-
19	Y311256		Cover, Terminal		Appelez-nous	-
20	Y0086540		Clamp, Cover		Appelez-nous	-
21	Y0311222		Compressor With Electricals		Appelez-nous	-
22	Y0086516		Clip, Compressor Mtg		Appelez-nous	-
23	Y0086532		Washer, Compressor Mounting		Appelez-nous	-
24	0086590		Grommet Compressor Mounting		Appelez-nous	-
25	311214		Defrost Plate		Appelez-nous	-
26	Y0053781		Cam, Ice Level		Appelez-nous	-
27	Y311191		Insulator, Evaporator		Appelez-nous	-
NI	Y0311220		Hot Tube Repair Kit		Appelez-nous	-
NI	53612		Screw-bracket		Appelez-nous	-
NI	Y0053712		Bracket, Defrost Pan		Appelez-nous	-
NI	Y0053711		Bracket, Defrost Plate		Appelez-nous	-
NI	311184		Glass Panel, Left		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
