Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10925406W Ass`y, Ref Dr (white) Appelez-nous -
12 10925614W Assy, Fz Dr Fm (white) Appelez-nous -
21 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

22 M0219730 Screw Special Order $ 7.65

23 10253527 Assy, W Ref Handle Appelez-nous -
24 10253528 Assy, W Frz Hndl Appelez-nous -
31 M0219730 Screw Special Order $ 7.65

32 B0523593 Insulation, Batt Frz. Dr. Appelez-nous -
33 10201802 Cover-handle Screw W Appelez-nous -
34 10201801 Cover-handle Screw W Appelez-nous -
42 12968202W Stop, Door (wht)   (Replaces: 10447108) Special Order $ 69.29

43 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

44 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

52 10202001 Clip, Retainer Appelez-nous -
53 WPW10348409 Screw   (Replaces: M0221718) In-Stock Immediately $ 8.20

54 WPW10348409 Screw   (Replaces: M0221718) In-Stock Immediately $ 8.20

62 10456834 Gasket,fz Dr(white) Appelez-nous -
64 10184301 Plug-nameplate W Appelez-nous -
65 10961001 Bushing, Door (wht) Appelez-nous -
66 10961001 Bushing, Door (wht) Appelez-nous -
72 10447501 Liner, Frz Door Appelez-nous -
74 10184406 Nameplate, Handle Appelez-nous -
81 12968202W Stop, Door (wht)   (Replaces: 10447108) Special Order $ 69.29

83 10183117 Retainer, Ref Door Appelez-nous -
84 10184501 Pad Nameplate Appelez-nous -
92 WP67001130 Plug, Top Hinge Button (wht)   (Replaces: M0310729) In-Stock Immediately $ 5.98

102 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

103 12348101 Door- Dairy Appelez-nous -
104 10419012 Retainer, Ref Door Appelez-nous -
113 10183013 Shelf, Ref Door Appelez-nous -
114 10183013 Shelf, Ref Door Appelez-nous -
116 M0310308 Plug, Button (wht) Appelez-nous -
123 12348001 Shelf, Dairy Appelez-nous -
124 12419501 Nameplate, Door Appelez-nous -
125 M0310308 Plug, Button (wht) Appelez-nous -
131 WP12550111Q Gasket,ref Dr(white)   (Replaces: 10456833) Special Order $ 178.50

133 10431101 Shelf, Snack Stop Appelez-nous -
143 10431007 Door, Snack Stop Appelez-nous -
151 10444601 Liner, Refrig. Door Appelez-nous -
191 WP67001130 Plug, Top Hinge Button (wht)   (Replaces: M0310729) In-Stock Immediately $ 5.98

211 10419012 Retainer, Ref Door Appelez-nous -
221 10202001 Clip, Retainer Appelez-nous -
256 12028601 Bushing, Door (wht) Appelez-nous -
266 10252903 Filter, Bushing Appelez-nous -
5006 10686401 Plug Button Appelez-nous -
8005 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20


    View Diagram in Separate Window     Print Icon   Print Part List

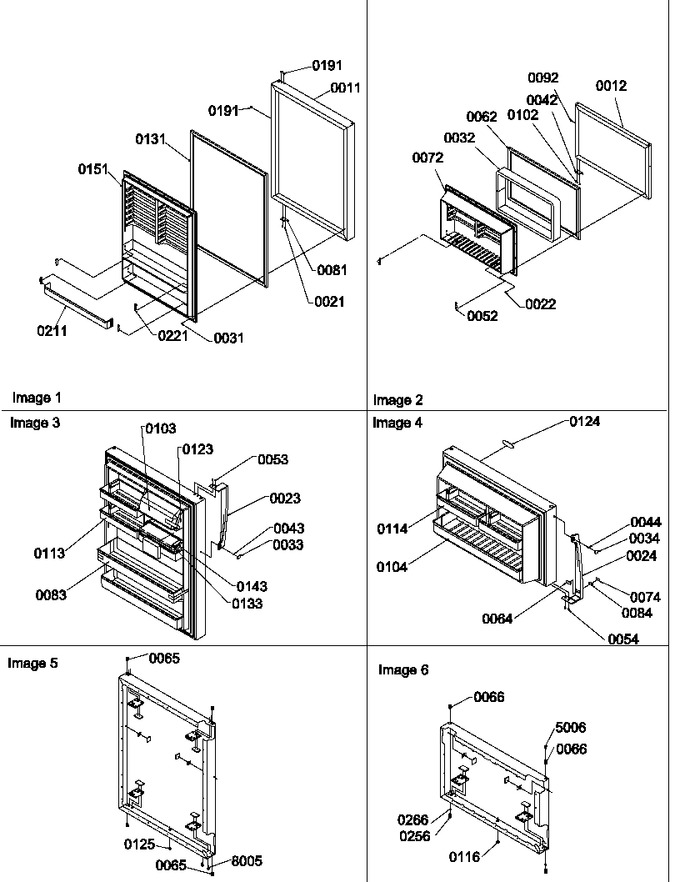

Diagram for HT600W (BOM: P1319401W W)
