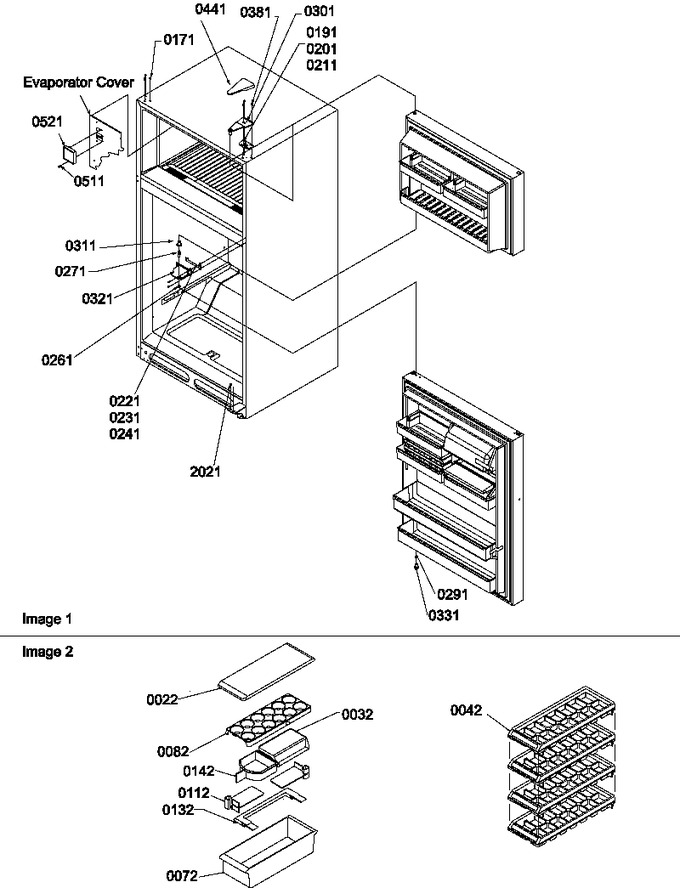

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
22	10436404		Lid, Utility				$ 60.85
32	10310901		Tray, Butter		Appelez-nous	-
42	WP841180A		Ice Tray   (Replaces: D7725402)			Immediately	$ 47.84
72	10423129		Bin-utility		Appelez-nous	-
82	10436506		Tray, Egg				$ 8.28
112	10467502		Snugger, Door Shelf (shelf Div		Appelez-nous	-
132	10468004		Retainer, Tall Pkg		Appelez-nous	-
142	10441102		Hugger, Bottle (shelf Divider)		Appelez-nous	-
171	WP67001130		Plug   (Replaces: M0310709)			Immediately	$ 5.98
191	10451301		Shim, Top Hinge				$ 1.08
201	10451302		Shim, Top Hinge				$ 0.63
211	10451303		Shim, Top Hinge				$ 1.08
221	10562201		Shim, Center Hinge		Appelez-nous	-
231	10562202		Shim, Center Hinge		Appelez-nous	-
241	10562203		Shim, Center Hinge		Appelez-nous	-
261	WPM0274057		Shim, Non Metal (wht)   (Replaces: M0274057)			Immediately	$ 8.40
271	10351002		Pin, Hinge (ctr)		Appelez-nous	-
291	M0274058		Shim, Non Metal (wht)				$ 5.83
301	12077305		Hinge, Top		Appelez-nous	-
311	12028501		Closure, Door (wht)				$ 6.67
321	10433512		Hinge-center				$ 88.17
331	67007018		Pin, Hinge (btm)   (Replaces: 10200801)			Immediately	$ 8.62
381	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
441	10444805		Cover, Hinge (white)		Appelez-nous	-
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
521	D7874403		Cover-fl Tb/plug		Appelez-nous	-
2021	M0310330		Plug, Button White		Appelez-nous	-
