Diagram # Part Number Description Series Availability Ships Price Add to Cart
12 12035103 Housing, Control Appelez-nous -
21 10476402 Insert, Drain Block Appelez-nous -
22 10439601 Rack, Control Appelez-nous -
31 10996101 Block-drain Appelez-nous -
32 10442601 Pinion, Control Appelez-nous -
41 12035216 Ref Top- E Ct Appelez-nous -
42 R0161072 Assy, Damper Control Appelez-nous -
51 10781103 Harness, Drain Block Appelez-nous -
52 10428604 Timer-defrost Appelez-nous -
61 D7845103 Socket, Light Appelez-nous -
62 R0161082 Assy, Fz Control Appelez-nous -
72 10442801 Insert,damper Appelez-nous -
82 10442901 Insulation, Damper Appelez-nous -
92 10279202 Switch, Heater Appelez-nous -
102 W11384469 Switch, Light   (Replaces: C3680308) In-Stock Immediately $ 39.09

131 10435913 Tray, Drip Appelez-nous -
132 10673602 Insulation, Cap Appelez-nous -
141 10450845 Membrane, Breaker Appelez-nous -
142 10565101 Shield, Wire Appelez-nous -
151 10995004 Freezer Bottom Appelez-nous -
161 10752201 Cap-switch Appelez-nous -
162 10900801 Shield, Cont Hsg. Appelez-nous -
171 10565401 Knob, Control Appelez-nous -
172 10877103 Cover, Switch Appelez-nous -
181 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

182 A3012542 Tube-plastic Appelez-nous -
191 M0224128 Screw Appelez-nous -
201 10995201 Insert-mk Air Sply Appelez-nous -
211 M0360402 Light Bulb (230/240 Vac) Appelez-nous -
231 10435514 Frame, Ref Top Brk Appelez-nous -
301 10508701 Shield, Refrig. Light Appelez-nous -
451 10594901 Gasket, Mk Air Supply Appelez-nous -
501 10775302 Heater, Ref Top Appelez-nous -
511 10907501 Brkt, Light Appelez-nous -
531 M0223328 Screw Appelez-nous -
541 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25

551 10993701 Cap-air Appelez-nous -
581 WP489128 Screw   (Replaces: M0253516) Special Order $ 11.40

NI 10785801 Harness, Control Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

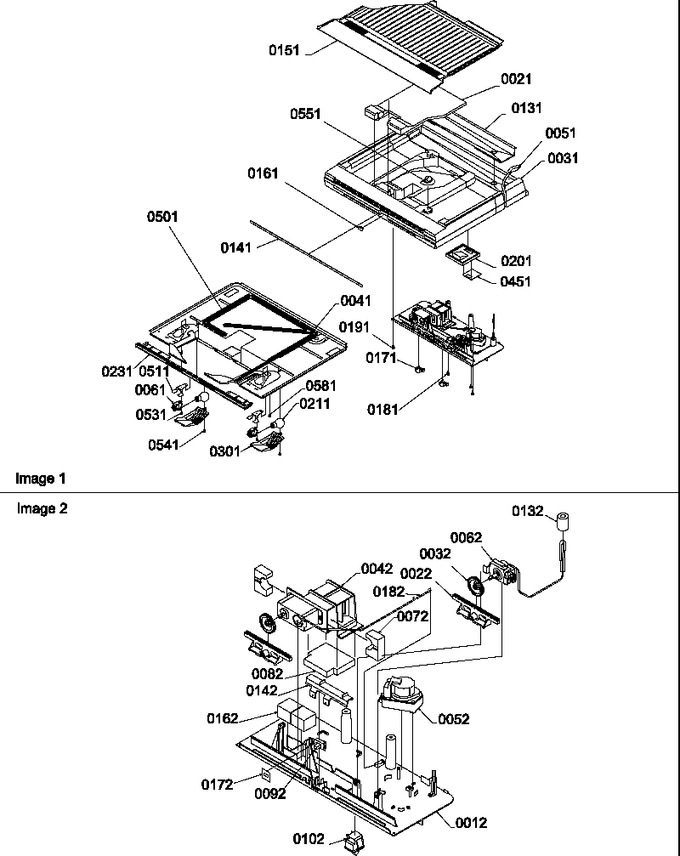

Diagram for HT600W (BOM: P1319401W W)
