Diagram # Part Number Description Series Availability Ships Price Add to Cart
13 10422304 Shroud, Evap. Fan Appelez-nous -
22 12028301 Thermostat, Defrost Appelez-nous -
23 W10116797 Assy, Fan-evap   (Replaces: 10855401) In-Stock Immediately $ 8.56

32 W11673433 Clip, Evap Heater   (Replaces: 10428101) Special Order $ 148.18

33 10449503 Motor, Evap Fan Special Order $ 92.65

42 10785902 Heater, Evap 230vac 50hz (tm O Appelez-nous -
43 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 46.17

52 R0170062 Assy,low Side Appelez-nous -
53 10492801 Brkt, Up Evap. Fan Special Order $ 5.27

63 10492701 Brkt, Lwr. Evap. Fan Special Order $ 5.27

73 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

82 10428202 Block, Evap. R Appelez-nous -
121 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

142 10789103 Thermostat Appelez-nous -
511 10428301 Block, Evap. L. Appelez-nous -
531 67006425 Screw, Sm   (Replaces: M0238642) In-Stock Immediately $ 7.30

681 10685508 Gasket, Sealing Appelez-nous -
691 10432406 Cover, Evaporator Appelez-nous -
1001 10440714 Cover, Evaporator Appelez-nous -
1011 10427712 Shield, Evap. Appelez-nous -
1061 10442301 Clip, Evaporator Appelez-nous -
1291 A3030356 Gasket Appelez-nous -
1421 M0253916 Screw Appelez-nous -
2051 A3189348 Gasket, Foam Appelez-nous -
3001 B5759626 Gasket, Sealing Appelez-nous -
6801 10586601 Clip, Ht Transfer Appelez-nous -
7001 WPW10339879 Tie   (Replaces: M0321213) Special Order $ 8.30

7631 A3030354 Gasket Appelez-nous -
8021 M0272803 Lock Washer Appelez-nous -
8071 M0110510 Clip-wire Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

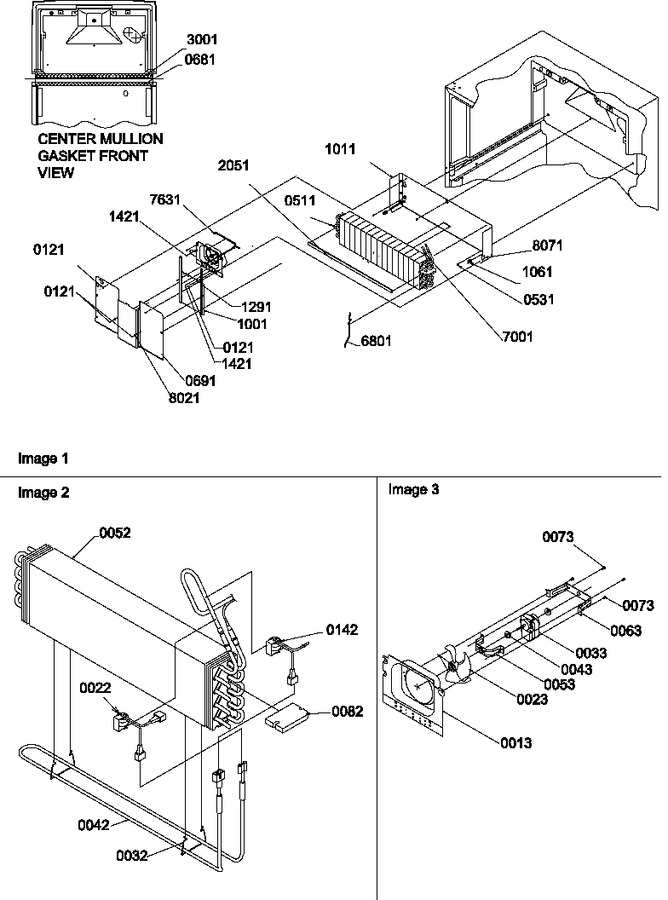

Diagram for HT600W (BOM: P1319401W W)
