Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10440403 Duct, Frz Air Appelez-nous -
21 10779601 Insul. Air Duct Appelez-nous -
31 12172406 Harness-cabinet Appelez-nous -
41 B8386613 Gasket Appelez-nous -
61 W11384469 Switch, Light   (Replaces: C3680308) In-Stock Immediately $ 39.09

71 B5733302 Clip, Ground Appelez-nous -
81 D7861803 Housing-light Appelez-nous -
83 12120406 Assy, Glide Shelf Appelez-nous -
91 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25

93 10698551 Assy, Crisper Frame Appelez-nous -
101 D7845103 Socket, Light Appelez-nous -
111 M0360402 Light Bulb (230/240 Vac) Appelez-nous -
121 M0580007 Grommet, Screw Appelez-nous -
131 10678401 Shield, Frz Light Appelez-nous -
132 Y10440002 Shelf, Freezer Wire Appelez-nous -
141 M0320905 Terminal Ground A Appelez-nous -
153 10543612 Heater, Mullion Appelez-nous -
161 A4539626 Pop Rivet Appelez-nous -
163 10433347 Mullion, Center (white) Appelez-nous -
171 M0223328 Screw Appelez-nous -
383 R9800670 Screw, Tf   (Replaces: M0238731) Special Order $ 10.58

913 10461901 Post, Crisper Support In-Stock Immediately $ 25.85

943 Y10430111 Pan-crisper Appelez-nous -
1163 10642103 Cover, Mk Air Sply Appelez-nous -
1173 10479401 Control, Mt. Kpr. Air Sup Appelez-nous -
1183 10479103 Tunnel, Mt Kpr Appelez-nous -
1393 10433611 Plate, Center Tap Appelez-nous -
1403 B0523584 Insulation Per Ft. Appelez-nous -
1433 WP67001130 Plug, Top Hinge Button (wht)   (Replaces: M0310729) In-Stock Immediately $ 5.98

1513 10481001 Roller, Pan Special Order $ 10.99

3623 M0211520 Screw - Sm Appelez-nous -
3663 12411301 Insert, Mk Control Appelez-nous -
3703 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

4053 10852401 Gasket, Mt Kpr Duct Appelez-nous -
6503 10772301 Insulation Appelez-nous -
8023 M0272803 Lock Washer Appelez-nous -
8083 M0320901 Terminal Appelez-nous -
8133 A4539626 Pop Rivet Appelez-nous -
8143 10992303 Rack, Utility Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

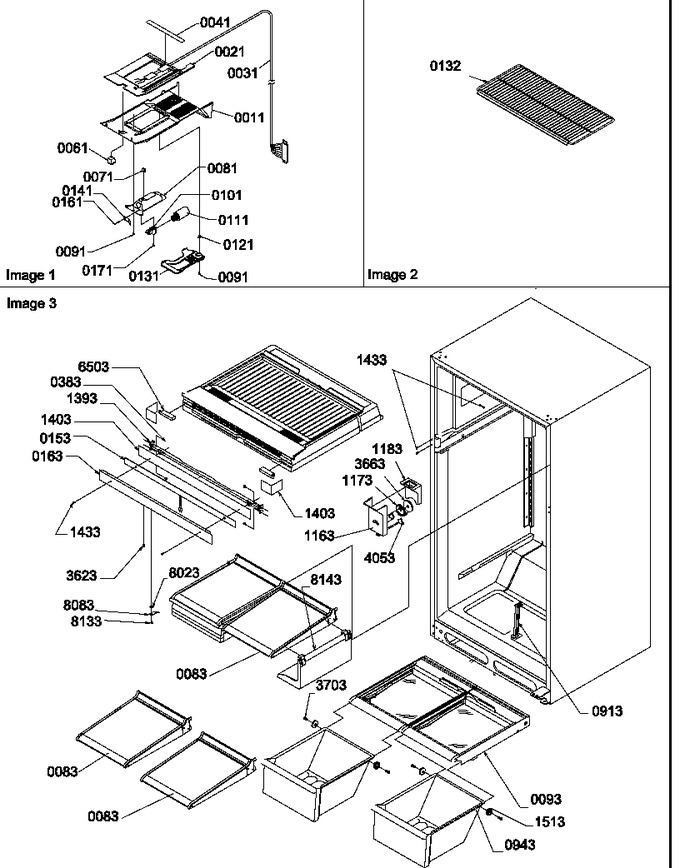

Diagram for HT600W (BOM: P1319401W W)
