SELECT A DIAGRAM

Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Cabinet And Breaker Trim Parts
02 - Cabinet And Breaker Trim Parts

Diagram for 03 - Top Grille And Unit Cover Parts
03 - Top Grille And Unit Cover Parts

Diagram for 04 - Refrigerator Liner Parts
04 - Refrigerator Liner Parts

Diagram for 05 - Freezer Liner Parts
05 - Freezer Liner Parts

Diagram for 06 - Shelf Parts
06 - Shelf Parts

Diagram for 07 - Refrigerator Door Parts
07 - Refrigerator Door Parts

Diagram for 08 - Freezer Door And Basket Parts
08 - Freezer Door And Basket Parts

Diagram for 09 - Upper Unit Parts
09 - Upper Unit Parts

Diagram for 10 - Lower Unit And Tube Parts
10 - Lower Unit And Tube Parts

Diagram for 11 - Icemaker Parts
11 - Icemaker Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 W10132411 Cabinet, Trim (right Side) Appelez-nous -
3 WP1163283 Screw   (Replaces: 1163283) Special Order $ 7.55

4 2316686 Cabinet Trim, Bottom Appelez-nous -
5 W11624204 Screw   (Replaces: 486194) Special Order $ 14.72

6 2313963S Cabinet Trim, Top Appelez-nous -
8 2005782 Cover, Hinge Special Order $ 12.04

9 2005925 Seal-trim, Side Special Order $ 83.72

10 W10132416 Cabinet Trim (left Side) Appelez-nous -
11 WP489464 Screw, 8-18 X 1/2   (Replaces: 489464) In-Stock Immediately $ 8.38

12 WPW10121451 Nutsert (4)   (Replaces: W10121451) In-Stock Immediately $ 8.03


    View Diagram in Separate Window     Print Icon   Print Part List

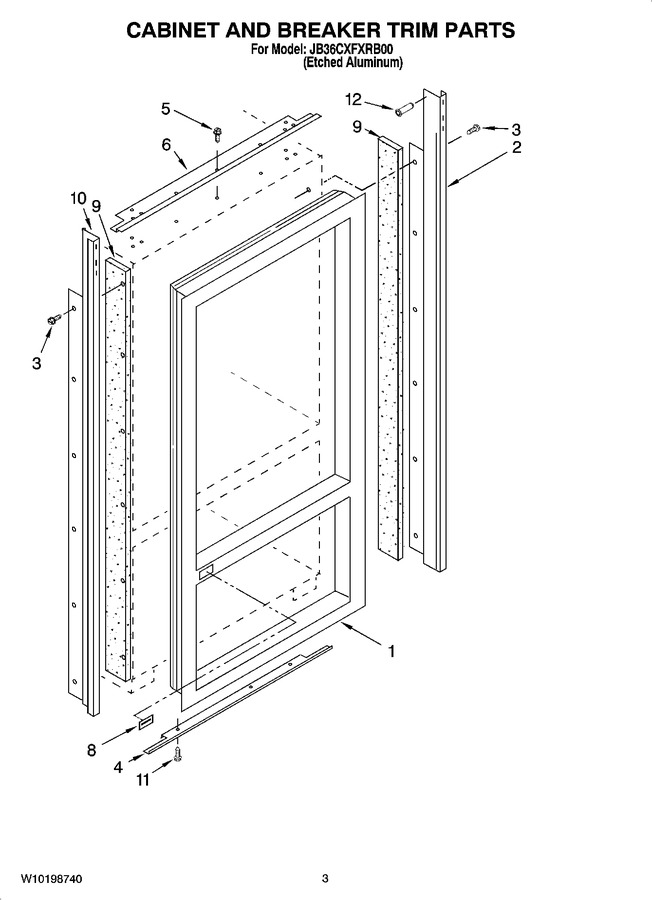

Diagram for JB36CXFXRB00
