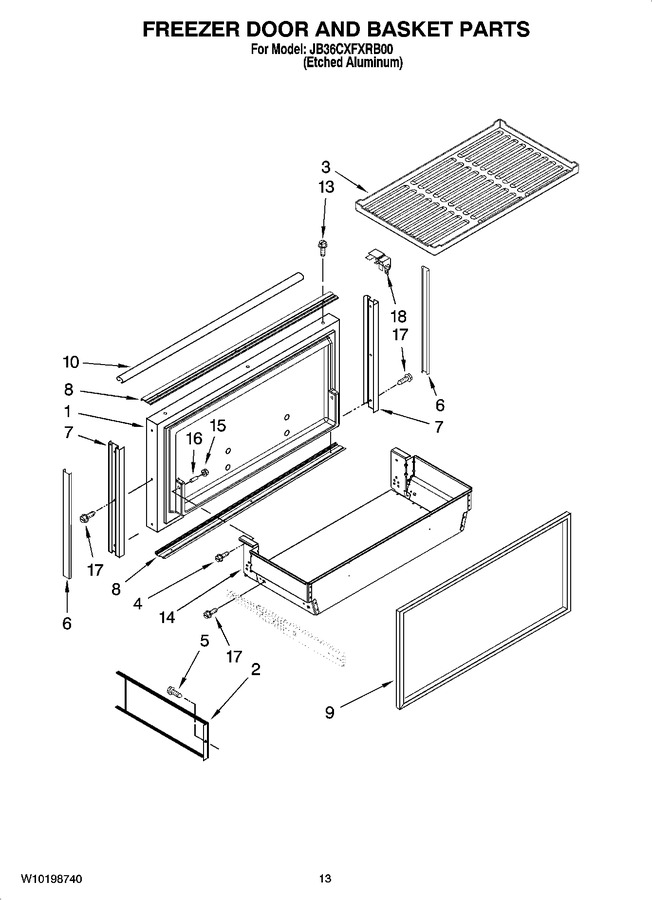

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2327401		Freezer Door Panel (includes Item 9)		Appelez-nous	-
2	2317101		Divider, Basket (2)		Appelez-nous	-
3	W10168937		Mat, Basket		Appelez-nous	-
4	W10135775		Screw				$ 14.93
5	WP488234		Screw   (Replaces: W10135792)				$ 7.08
6	2006324		Cover, Trim (sides)				$ 30.22
7	2309477		Trim-door, Side				$ 220.55
8	2309478		Trim-door (top & Bottom)				$ 187.20
9	2302710		Door Gasket, Magnetic   (Replaces: 2300185)				$ 307.89
10	2006329		Cover-trim, Top				$ 95.97
13	WP8281250		Screw   (Replaces: 8281250)				$ 11.42
14	W10258182		Basket Assembly, Freezer   (Replaces: 2327533)				$ 254.40
15	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 11.38
16	W10001190		Washer				$ 8.80
17	W10109030		Screw, 10-24 X 1/4 (basket To Slide)				$ 15.35
18	2207457		Trim, Corner (4)				$ 57.12

    View Diagram in Separate Window       Print Part List
