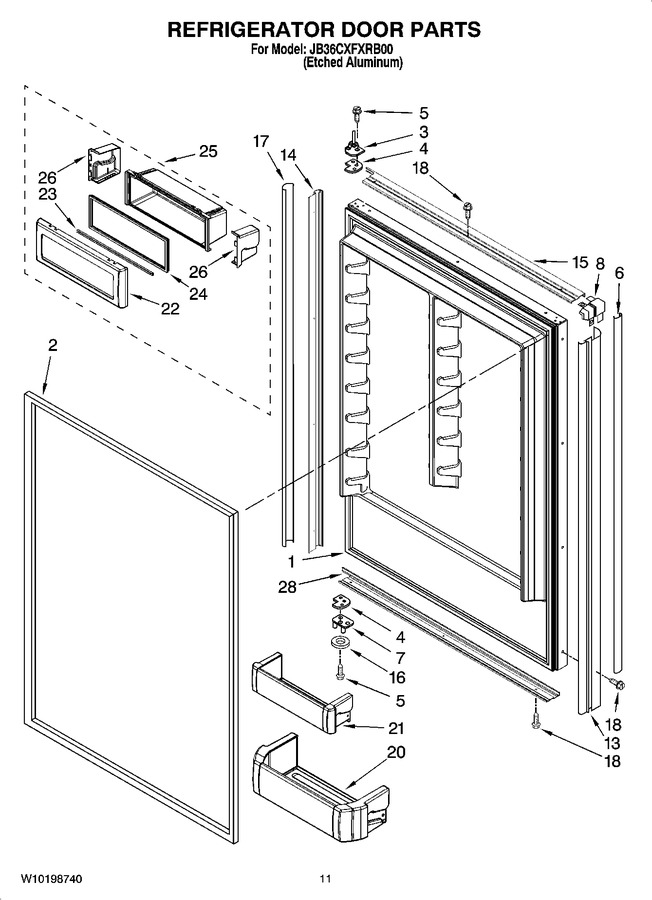

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2309390 | Door, Refrigerator (includes Item 2) |
|
- | |||||
| 2 | 2302709 | Gasket, Door (Replaces: 2300184) |
|
$ 328.30 | |||||
| 3 | 2256384 | Hinge Assembly, Top |
|
$ 69.79 | |||||
| 4 | W11673500 | Spacer-hinge (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 5 | WP8533980 | Screw (Replaces: 8533980) |
|
Immediately | $ 86.64 | ||||
| 6 | 2209084S | Cover, Trim (handle Side) |
|
$ 136.73 | |||||
| 7 | 2256280 | Bottom Hinge Assembly |
|
$ 68.49 | |||||
| 8 | 2207457 | Trim, Corner |
|
$ 57.12 | |||||
| 13 | 2309475 | Trim-door (handle Side) |
|
$ 305.29 | |||||
| 14 | 2309476 | Trim-door, Side (hinge Side) |
|
- | |||||
| 15 | 2309473 | Trim-door, Top |
|
$ 288.89 | |||||
| 16 | WP2006346 | Washer (Replaces: 2006346) |
|
Immediately | $ 11.76 | ||||
| 17 | 2266942S | Cover, Trim (handle Side) |
|
$ 97.89 | |||||
| 18 | WP8281250 | Screw, 8-15 X 1/2 (Replaces: 8281250) |
|
$ 11.42 | |||||
| 20 | W10323749 | Shelf, Door (gallon) (Replaces: 2307975) |
|
$ 136.84 | |||||
| 21 | W11590561 | Shelf, Door (4) (Replaces: 2222777) |
|
$ 94.23 | |||||
| 22 | 2309255 | Door, Utility Bin |
|
$ 43.26 | |||||
| 23 | 2309256 | Rail, Lid |
|
- | |||||
| 24 | 2309257 | Gasket, Utility Bin |
|
- | |||||
| 25 | W10323044 | Bin, Utility (Replaces: 2309252) |
|
$ 132.58 | |||||
| 26 | WPW10323173 | End Cap, Utility Bin (left Side) (Replaces: 2222920) |
|
$ 8.60 | |||||
| 28 | 2309474 | Trim-door, Bottom |
|
$ 260.24 | |||||
| 26A | WPW10323172 | End Cap, Utility Bin (right Side) (Replaces: 2222919) |
|
$ 8.60 |
