SELECT A DIAGRAM

Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Cabinet And Breaker Trim Parts
02 - Cabinet And Breaker Trim Parts

Diagram for 03 - Top Grille And Unit Cover Parts
03 - Top Grille And Unit Cover Parts

Diagram for 04 - Refrigerator Liner Parts
04 - Refrigerator Liner Parts

Diagram for 05 - Freezer Liner Parts
05 - Freezer Liner Parts

Diagram for 06 - Shelf Parts
06 - Shelf Parts

Diagram for 07 - Refrigerator Door Parts
07 - Refrigerator Door Parts

Diagram for 08 - Freezer Door And Basket Parts
08 - Freezer Door And Basket Parts

Diagram for 09 - Upper Unit Parts
09 - Upper Unit Parts

Diagram for 10 - Lower Unit And Tube Parts
10 - Lower Unit And Tube Parts

Diagram for 11 - Icemaker Parts
11 - Icemaker Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2313980S Top Grille Assembly Special Order $ 255.19

2 W10161693 Cover, Unit Appelez-nous -
3 2215910 Grommet Special Order $ 94.32

4 2256466 Back Panel Special Order $ 327.22

5 2307682 Front, Unit Cover Appelez-nous -
6 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 11.87

7 2187894 Wire Assembly, Light Switch Appelez-nous -
9 489348 Clamp Appelez-nous -
10 2003347 Tee Bolt (4) Special Order $ 14.99

11 WP488130 Nut (4)   (Replaces: 1161548) Special Order $ 7.32


    View Diagram in Separate Window     Print Icon   Print Part List

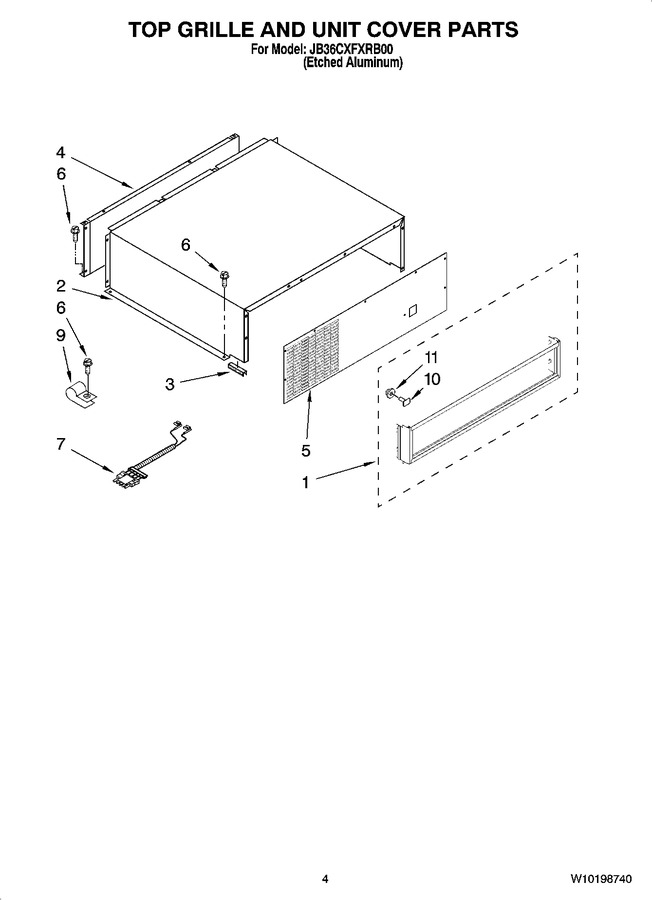

Diagram for JB36CXFXRB00
