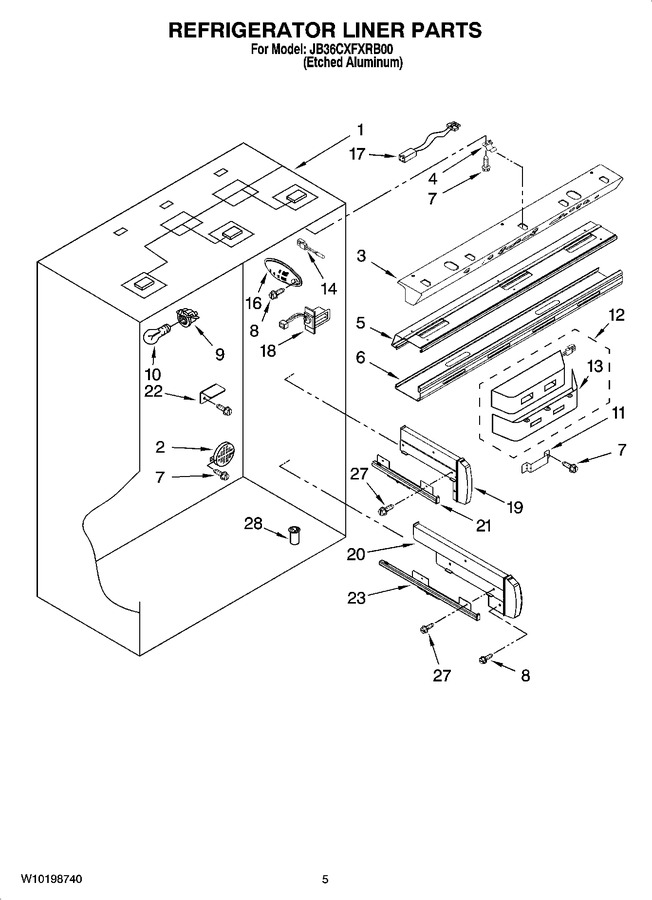

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2317004		Cover, Air Return (2)		Appelez-nous	-
3	W10468944		Control Box   (Replaces: W10183780)				$ 1,437.80
4	2317000		Clip, Control Box		Appelez-nous	-
5	2324970		Bracket, Control Box		Appelez-nous	-
6	2309270		Shield, Light		Appelez-nous	-
7	WP488729		Screw, 8-15 X 1/2   (Replaces: 487539)			Immediately	$ 8.28
8	WP488163		Screw   (Replaces: 488163)				$ 7.92
9	WPW10191429		Socket, Light (3)   (Replaces: 2223857)				$ 8.80
10	WPA3073101		Bulb, Light (3)   (Replaces: 2326255)			Immediately	$ 12.72
11	2317917		Clip, Diffuser Cover		Appelez-nous	-
12	2320523		Diffuser Assembly				$ 100.60
13	2320519		Cover, Diffuser				$ 117.62
14	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
16	WP2317844		Cover, Thermistor   (Replaces: 2317105)				$ 11.38
17	2310164		Wire, Jumper		Appelez-nous	-
18	WP2221296		Air Baffle Assy.   (Replaces: 2221296)			Immediately	$ 412.58
19	2309411		Spacer, Crisper (left)		Appelez-nous	-
19	2309410		Spacer, Crisper (right)		Appelez-nous	-
20	2268411		Spacer, Deli (left)		Appelez-nous	-
20	2268412		Spacer, Deli (right)		Appelez-nous	-
21	2302953		Slide, Crisper Pan (right (2))			Immediately	$ 318.41
21	2302952		Slide, Crisper Pan (left (2))			Immediately	$ 318.09
22	2302788		Support, Crisper Cover		Appelez-nous	-
23	2302956		Slide, Deli Pan (left (2))				$ 298.73
23	2302957		Slide, Deli Pan (right (2))				$ 228.33
27	WPW10001160		Screw, 8-32 X 1/2   (Replaces: W10001160)				$ 10.33
28	WP2210509		Valve, Tube-body   (Replaces: 2171931)				$ 99.15
