01 - Top And Cabinet, Literature
02 - Section

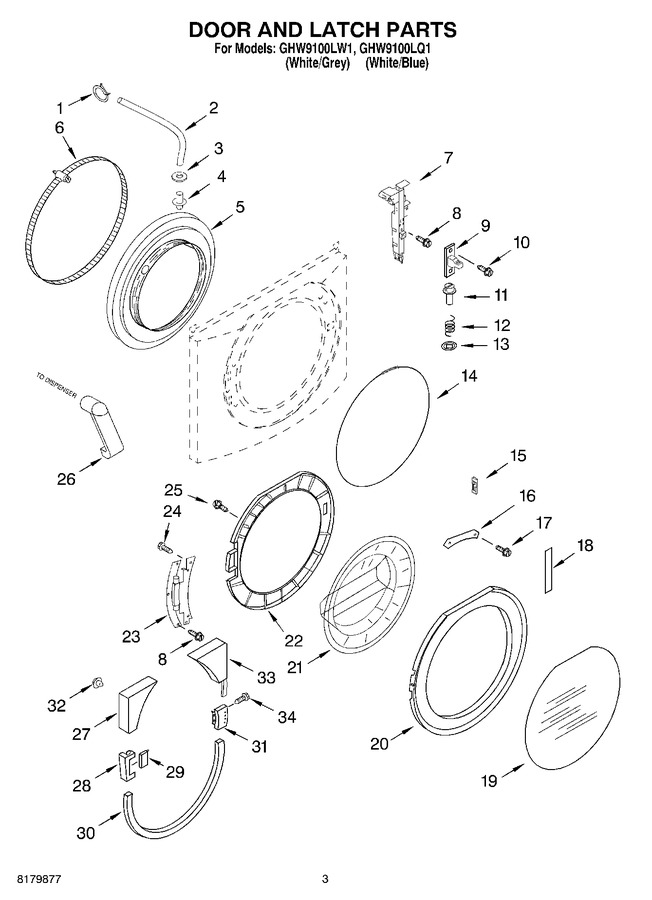

03 - Door And Panel
04 - Dispenser
05 - Tub And Basket
06 - Pump And Motor
07 - Pedestal
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489503 | Clamp (Replaces: 8181750) |
|
Immediately | $ 10.75 | ||||
| 2 | 8181711 | Hose, Box To Bellow |
|
$ 9.26 | |||||
| 3 | 8181717 | Washer |
|
- | |||||
| 4 | 8181716 | Nozzle, Inlet Window |
|
$ 9.25 | |||||
| 5 | WP8181850 | Bellow (Replaces: 8181850) |
|
Immediately | $ 218.80 | ||||
| 6 | WP8182210 | Clamp, Bellow (Replaces: 8181663) |
|
Immediately | $ 35.04 | ||||
| 7 | WP8182634 | Lock, Door (Replaces: 8181700) |
|
Immediately | $ 107.85 | ||||
| 8 | WP8540725 | Screw (Replaces: 8181760) |
|
$ 7.68 | |||||
| 9 | WP8181651 | Hook, Door (Replaces: 8181651) |
|
Immediately | $ 12.46 | ||||
| 10 | W11230114 | Screw (Replaces: 8181758) |
|
$ 13.28 | |||||
| 11 | 8181652 | Pin, Safety |
|
- | |||||
| 12 | 8181653 | Spring |
|
- | |||||
| 13 | 8181654 | Washer |
|
- | |||||
| 14 | W10902779 | Clamp, Bellow Front (Replaces: 8181664) |
|
Immediately | $ 30.31 | ||||
| 15 | 8181659 | Clamp, Support |
|
- | |||||
| 16 | 8181650 | Clamp, Glass |
|
- | |||||
| 17 | 8181785 | Screw |
|
$ 6.33 | |||||
| 18 | 8181845 | Foam, Door Handle |
|
- | |||||
| 19 | 8181847 | Screen, Door |
|
- | |||||
| 20 | 8181878 | Door Frame (blue) |
|
- | |||||
| 20 | 8181848 | Door Frame (grey) |
|
- | |||||
| 21 | 8181655 | Glass, Door |
|
- | |||||
| 22 | 8181849 | Door, Back Support |
|
- | |||||
| 23 | 8181843 | Hinge, Door |
|
$ 134.73 | |||||
| 24 | WP8181660 | Screw (Replaces: 8181660) |
|
$ 6.95 | |||||
| 25 | WP8540282 | Screw (Replaces: 8181661) |
|
$ 11.56 | |||||
| 26 | WPW10005300 | Tube, Dispenser To Bellow (Replaces: 8181718) |
|
Immediately | $ 21.19 | ||||
| 27 | 8181842 | Trim, Upper Left (grey) |
|
- | |||||
| 27 | 8181875 | Trim, Upper Left (blue) |
|
- | |||||
| 28 | 8181841 | Cover, Hinge (outer) (grey) |
|
- | |||||
| 28 | 8181874 | Cover, Hinge (outer) (blue) |
|
- | |||||
| 29 | 8181844 | Cover, Hinge (inner) (grey) |
|
- | |||||
| 29 | 8181876 | Cover, Hinge (inner) (blue) |
|
- | |||||
| 30 | 8181840 | Trim, Lower (grey) |
|
- | |||||
| 30 | 8181873 | Trim, Lower (blue) |
|
- | |||||
| 31 | WP8181846 | Handle, Door (grey) (Replaces: 8181846) |
|
Immediately | $ 30.47 | ||||
| 31 | WP8181846 | Handle, Door (blue) (Replaces: 8181877) |
|
Immediately | $ 30.47 | ||||
| 32 | 8181929 | Clip, Trim |
|
$ 5.84 | |||||
| 33 | 8181839 | Trim, Upper Right (grey) |
|
- | |||||
| 33 | 8181872 | Trim, Upper Right (blue) |
|
- | |||||
| 34 | WP3400805 | Screw (Replaces: 8181759) |
|
$ 7.19 |
