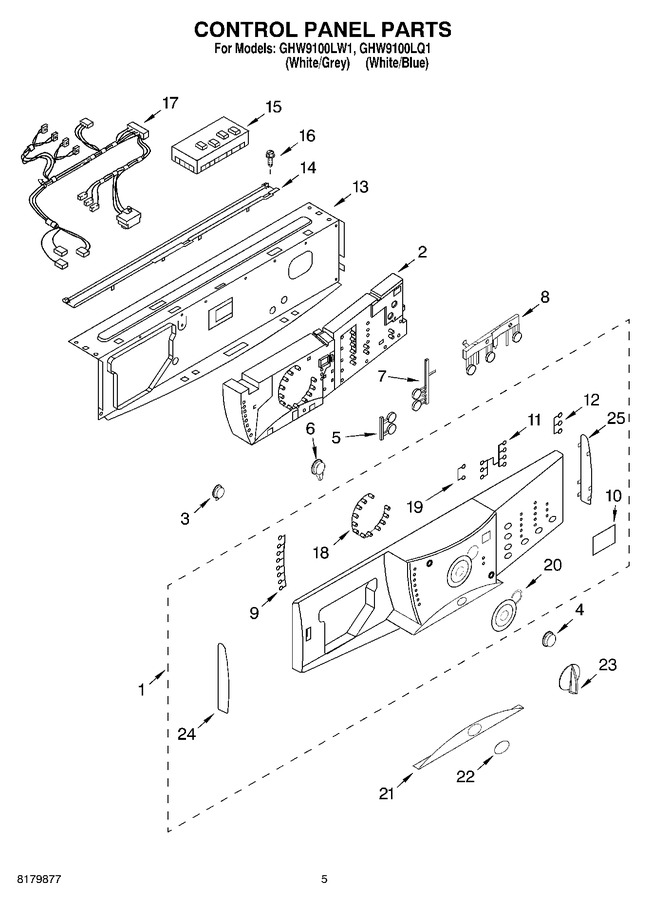

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8181886		Panel, Control (blue)		Appelez-nous	-
1	8181885		Panel, Control (grey)		Appelez-nous	-
2	8181905		User Interface				$ 309.45
3	8181860		Button, Power				$ 31.30
4	WP8181861		Button, Start   (Replaces: 8181861)				$ 69.96
5	8181863		Button Set, Soil Level (grey)				$ 60.60
5	8181882		Button Set, Soil Level (blue)		Appelez-nous	-
6	8181862		Button, Pause/cancel				$ 6.92
7	8181892		Button Set, Options (blue)		Appelez-nous	-
7	8181889		Button Set, Options (grey)				$ 68.05
8	8181865		Button Set, Spin/temperature (grey)				$ 64.96
8	8181884		Button Set, Spin/temperature (blue)		Appelez-nous	-
9	8181868		Light, Indicator (status)		Appelez-nous	-
10	8181856		Window, Display		Appelez-nous	-
11	8181908		Light, Indicator (7 Lights)		Appelez-nous	-
12	8181871		Light, Indicator (3 Lights)		Appelez-nous	-
13	8181639		Brace, Front Top		Appelez-nous	-
14	8181640		Channel, Water		Appelez-nous	-
15	8181923		Microcomputer, Machine Control		Appelez-nous	-
16	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 7.79
17	8181783		Harness, Wire				$ 119.42
18	8181906		Light, Indicator (program)		Appelez-nous	-
19	8181907		Light, Indicator (2 Lights)		Appelez-nous	-
20	8181855		Bezel, Knob		Appelez-nous	-
21	8181857		Overlay, Door		Appelez-nous	-
22	8181858		Medallion		Appelez-nous	-
23	WP8181859		Knob, Control (grey)   (Replaces: 8181859)			Immediately	$ 41.63
23	WP8181881		Knob, Control (blue)   (Replaces: 8181881)				$ 24.00
24	8181852		Endcap, Left		Appelez-nous	-
25	8181853		Endcap, Right		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
