Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8181694		Valve, Inlet   (Replaces: 8181694)			Immediately	$ 89.12
2	WP8181710		Hose, Flowmeter (l-shaped)   (Replaces: 8181710)				$ 24.59
3	WP489503		Clamp   (Replaces: 8181751)			Immediately	$ 10.75
4	WPW10110225		Flowmeter   (Replaces: 8181696)			Immediately	$ 109.03
5	WP489503		Clamp   (Replaces: 8181754)			Immediately	$ 10.75
6	8181708		Hose, Flowmeter				$ 37.73
7	8181713		Nozzle, Inlet				$ 13.21
8	8181709		Hose, Dispenser				$ 6.14
9	8181714		O-ring		Appelez-nous	-
10	8181728		Screw		Appelez-nous	-
11	8181726		Cam, Actuator				$ 9.80
12	8181725		Lever, Water Distribution				$ 12.31
13	WPW10665207		Actuator   (Replaces: 8181723)				$ 181.11
14	WP3400805		Screw, Self-cutting   (Replaces: 8181759)				$ 7.19
15	8181727		Spring, Lever		Appelez-nous	-
16	8181724		Connection, Lever				$ 9.87
17	8181719		Dispenser		Appelez-nous	-
18	WP8181712		Nozzle, Distribution   (Replaces: 8181712)				$ 89.11
19	WP8181747		Seal   (Replaces: 8181747)			Immediately	$ 26.03
20	8181888		Handle, Drawer (blue)		Appelez-nous	-
20	WP8181887		Handle, Drawer (grey)   (Replaces: 8181887)			Immediately	$ 98.05
21	WP8181720		Drawer, Detergent   (Replaces: 8181720)			Immediately	$ 110.01
22	8181722		Container, Detergent				$ 31.80
23	8181729		Siphon, Bleach/softener		Appelez-nous	-
24	8181730		Separator				$ 35.90
25	8181721		Hook, Drawer				$ 37.02
26	8181715		Nozzle, Window Rinse		Appelez-nous	-
27	8181781		Harness, Wiring (inlet Valve)				$ 134.73
28	8181898		Cover, Pre-wash		Appelez-nous	-

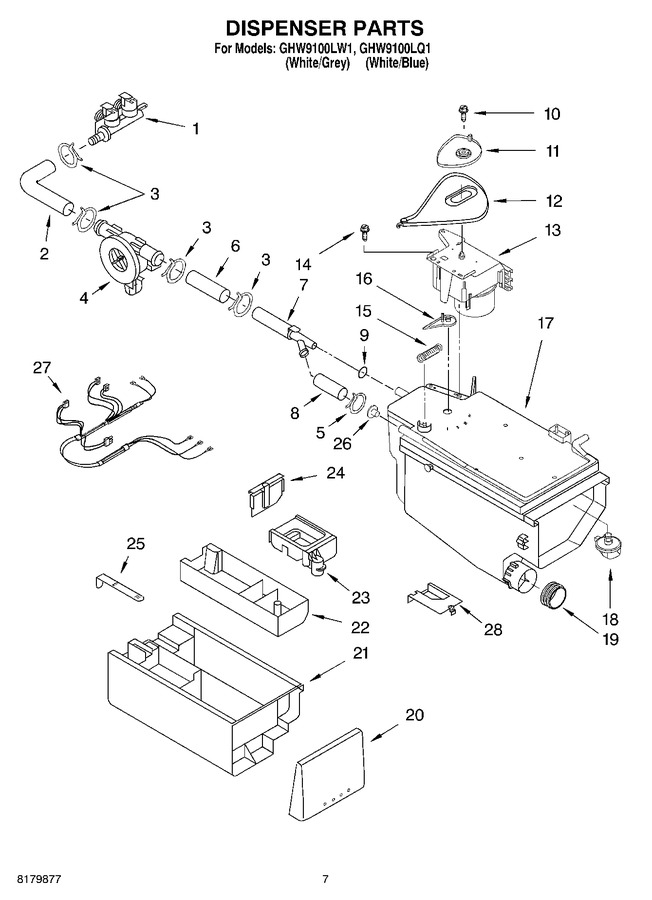

    View Diagram in Separate Window       Print Part List
