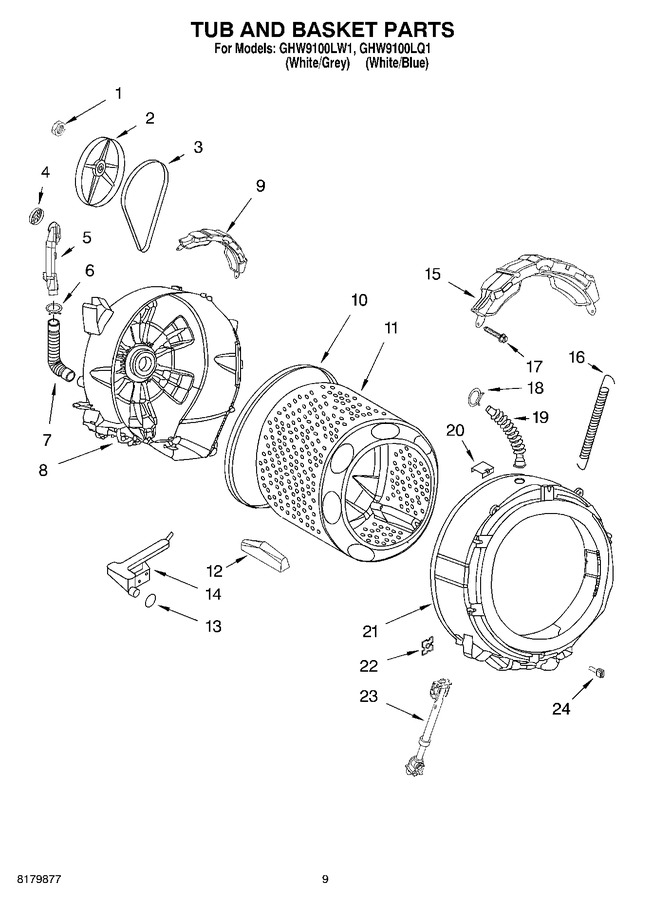

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10283361		Nut, Pulley   (Replaces: 8181672)			Immediately	$ 79.11
2	WP8182650		Pulley   (Replaces: 8181671)			Immediately	$ 187.69
3	WPW10388414		Belt   (Replaces: 8181670)			Immediately	$ 53.86
4	8181745		Grid, Ventilation				$ 15.11
5	8181744		Pipe, Ventilation				$ 82.50
6	8540010		Clamp   (Replaces: 8181746)				$ 11.18
7	WP8181743		Hose, Exhaust   (Replaces: 8181743)				$ 108.37
8	W10772617		Tub, Rear   (Replaces: 8181912)				$ 669.38
9	8181913		Counterweight, Rear		Appelez-nous	-
10	W10772613		Gasket, Tub   (Replaces: 8181673)				$ 414.50
11	8181914		Basket				$ 483.19
12	285976		Baffle, Tub   (Replaces: 8181669)			Immediately	$ 149.36
13	WPW10250553		O-ring   (Replaces: 8181748)				$ 7.19
14	8181731		Airtrap				$ 29.07
15	WPW10008880		Counterweight, Front   (Replaces: 8181645)				$ 175.92
16	W10135004		Spring, Suspension   (Replaces: 8181762)			Immediately	$ 83.60
17	8181647		Bolt		Appelez-nous	-
18	WP3367052		Clamp   (Replaces: 8181742)				$ 8.32
19	WP8181794		Hose, Tub To Dispenser   (Replaces: 8181794)				$ 38.27
20	WP8540092		Clamp   (Replaces: 8181667)				$ 7.59
21	W10772612		Tub, Front   (Replaces: 8181825)				$ 533.98
22	WP8182512		Nut, Push-in   (Replaces: 8181648)			Immediately	$ 6.95
23	WP8182703		Shock Absorber   (Replaces: 8181646)			Immediately	$ 47.59
24	WPW10467289		Ntc   (Replaces: 8181705)			Immediately	$ 47.80
