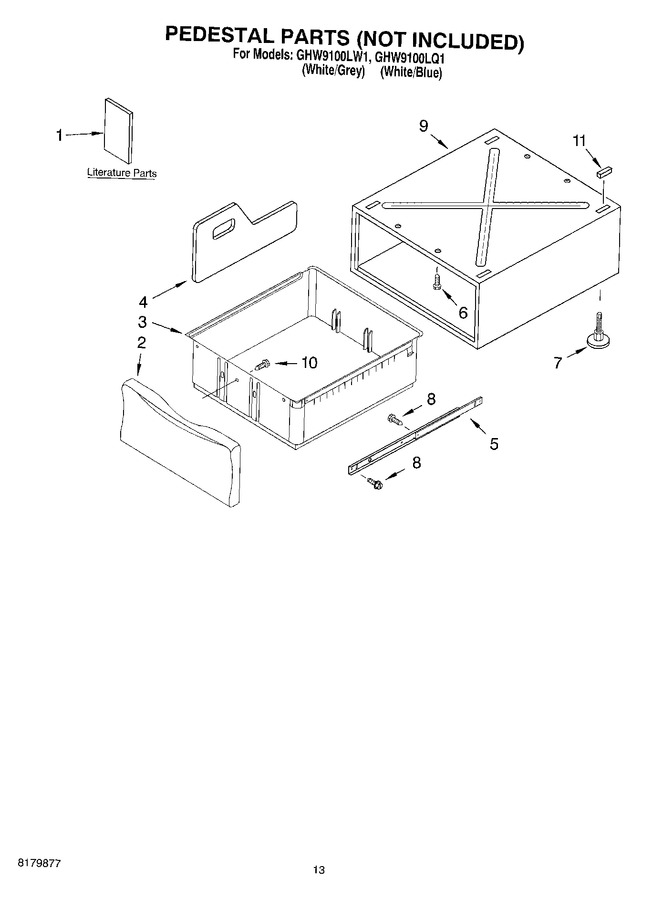

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8528308		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT8528309		Literature Parts (parts List)		Appelez-nous	-
2	8181773		Drawer Front Assembly (biscuit)		Appelez-nous	-
2	8181774		Drawer Front Assembly (graphite)		Appelez-nous	-
2	8181772		Drawer Front Assembly (white)		Appelez-nous	-
3	8181775		Drawer		Appelez-nous	-
4	8181777		Divider, Drawer (set Of 2)		Appelez-nous	-
5	WP8578394		Slide Assembly   (Replaces: 8181778)				$ 98.16
6	WPW10346892		Screw   (Replaces: 3400111)			Immediately	$ 7.19
7	WP8563585		Foot Assembly   (Replaces: 8181779)			Immediately	$ 14.76
8	WP694091		Screw, 6-30 X 3/8   (Replaces: 8181793)				$ 7.19
9	N/A		Cabinet (not Serviced)		Appelez-nous	-
10	WP488729		Screw, 8-15 X 1/2   (Replaces: 487909)			Immediately	$ 7.79
11	8181909		Pad (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
