SELECT A DIAGRAM

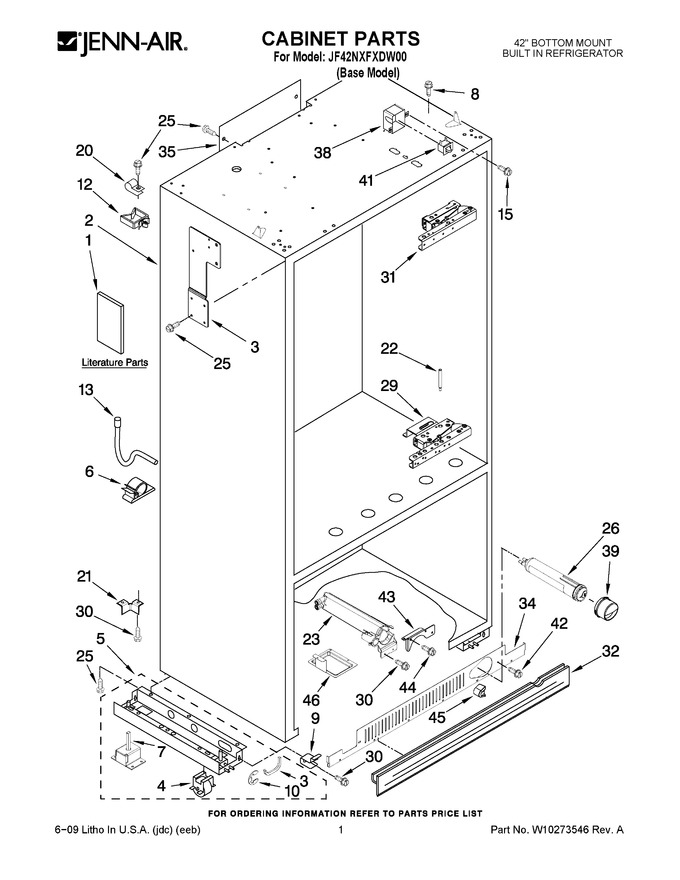

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10231365		Use & Care Guide		Appelez-nous	-
1	W10246796		Energy Guide		Appelez-nous	-
1	W10234137		Service & Wiring Sheet		Appelez-nous	-
1	W10234147		Main Control Service Sheet		Appelez-nous	-
1	W10231367		Installation Instructions		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	W10188499		Support, Grille (left)				$ 66.70
3	W10188500		Support, Grille (right)				$ 115.89
4	WPW10138054		Roller, Front & Rear (4)   (Replaces: W10138054)				$ 45.34
5	W10860448		Support, Leveler Assembly (right Side)   (Replaces: W10138423)			Immediately	$ 383.00
5	W10860229		Support, Leveler Assembly (left Side)   (Replaces: W10138425)				$ 381.83
6	2004514		Clip, Conduit		Appelez-nous	-
7	2005032		Leveler Assy.			Immediately	$ 200.07
8	WP8281164		Screw   (Replaces: 8281164)				$ 11.33
9	W10839844		Mounting Bracket, Grille   (Replaces: 2307640)				$ 43.26
10	2006841		Ring, Retainer				$ 92.66
12	W10129069		Clip (6)		Appelez-nous	-
13	2314064		Tube, Drain				$ 93.88
15	WP965173		Screw, 8-18 X 3/8   (Replaces: 487415)			Immediately	$ 11.87
20	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 11.54
21	2006617		Bracket, Support Door		Appelez-nous	-
22	W10234202		Stop, Door				$ 91.73
23	WPW10121140		Housing, Water Filter   (Replaces: 2260526)			Immediately	$ 171.96
25	W11624204		Screw   (Replaces: 486194)				$ 14.72
26	EDR3RXD1B		Filter, Water   (Replaces: 4396841)			Immediately	$ 49.99
29	W10136731		Hinge, Bottom Refrigerator Door				$ 516.30
30	WP489464		Screw, 8-18 X 1/2   (Replaces: 489464)			Immediately	$ 8.38
31	W10167398		Hinge Door, Ref Top (left Side)				$ 407.94
31	W10167397		Hinge Door, Ref Top (right Side)				$ 557.77
32	WPW10188549		Skirt-grille, Bottom   (Replaces: W10188549)				$ 144.20
34	W11739146		Grille Base, Front   (Replaces: W10189198)				$ 212.66
35	2215612		Cover, Air Duct		Appelez-nous	-
38	W10167387		Cover, Switch (left)				$ 77.58
38	W10167341		Cover, Switch (right)				$ 77.09
39	WP2260518B		Cap, Water Filter   (Replaces: 2260518B)			Immediately	$ 28.26
41	W11384469		Switch, Rocker Arm (2)   (Replaces: C3680314)			Immediately	$ 39.09
42	WP489464		Screw, 8-18 X 1/2   (Replaces: W10005050)			Immediately	$ 8.38
43	W11755873		Bracket, Mounting (filter)   (Replaces: W10223655)				$ 80.33
44	WP8281163		Screw, 8-16 X 1/2   (Replaces: 8281163)			Immediately	$ 10.70
45	WP2260503B		Button, Filter   (Replaces: 2260503B)				$ 76.42
46	2318189		Tray, Drip Filter				$ 148.73

    View Diagram in Separate Window       Print Part List
