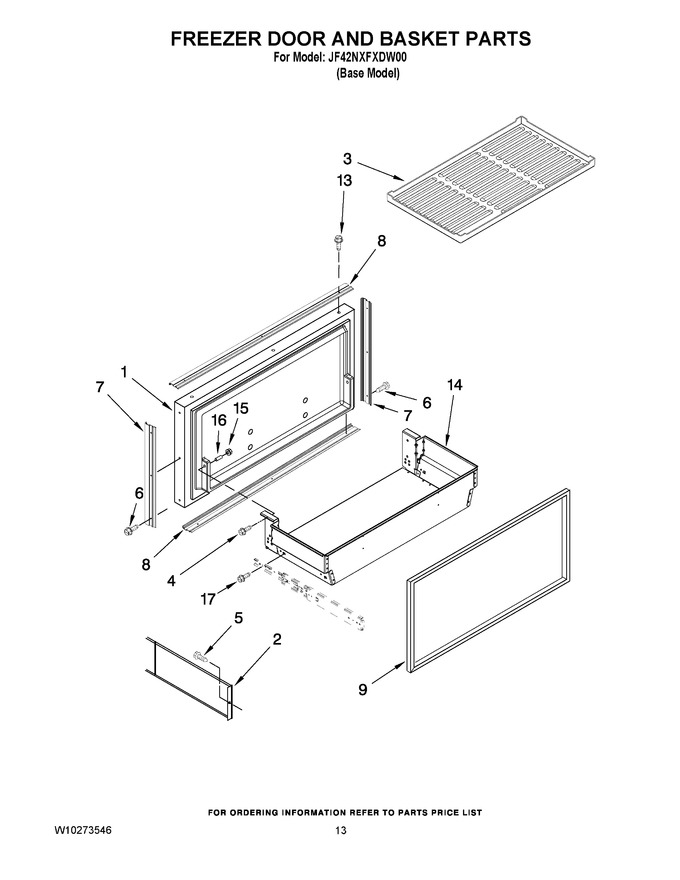

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10138397 | Freezer Door (includes No.9) |
|
- | |||||
| 2 | 2317101 | Divider, Basket (2) |
|
- | |||||
| 3 | W10665413 | Mat, Basket (Replaces: W10183770) |
|
$ 283.65 | |||||
| 4 | W10135775 | Screw, 5/16 X 3/4 |
|
$ 14.93 | |||||
| 5 | WP488234 | Screw, 8/32 X 1/4 (Replaces: W10135792) |
|
$ 7.08 | |||||
| 6 | W10109030 | Screw |
|
$ 15.35 | |||||
| 7 | W10203452 | Trim-door, Side |
|
$ 102.63 | |||||
| 8 | W10203453 | Trim-door, Top & Bottom |
|
$ 117.61 | |||||
| 9 | WPW10192907 | Door Gasket, Magnetic (Replaces: W10192907) |
|
Immediately | $ 363.09 | ||||
| 13 | W10825422 | Screw, 8-15 X 1/2 (Replaces: 8281251) |
|
$ 11.36 | |||||
| 14 | 2327532 | Basket Assembly, Freezer |
|
- | |||||
| 15 | WP2207454 | Nut, Hex (Replaces: 2207454) |
|
$ 11.38 | |||||
| 16 | W10001190 | Washer |
|
$ 8.80 | |||||
| 17 | W10135775 | Screw, 5/16-24 X 1 (basket To Slide) |
|
$ 14.93 |
