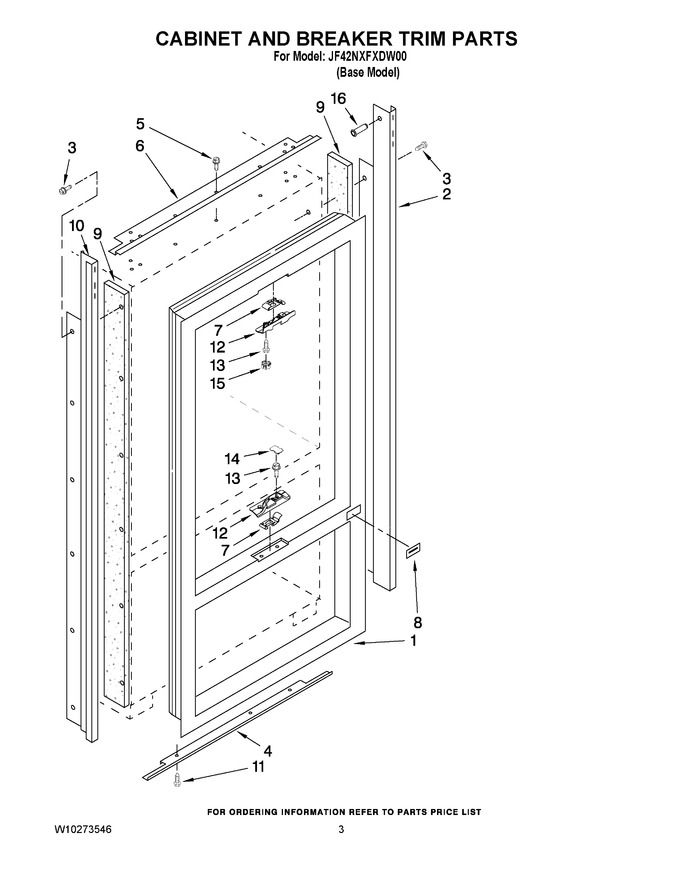

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Breaker, Trim (not Serviced)		Appelez-nous	-
2	W10207207		Cabinet Trim, Right Side				$ 214.60
3	WP1163283		Screw   (Replaces: 1163283)				$ 7.19
4	W10188505		Cabinet, Trim (bottom)				$ 124.72
5	W11624204		Screw   (Replaces: 486194)				$ 14.02
6	W10138451		Cabinet, Trim Top				$ 211.29
7	2316857		Cam, Mullion (top)				$ 15.67
7	2316858		Cam, Mullion (bottom)		Appelez-nous	-
8	2005782		Cover, Hinge				$ 12.04
9	2005925		Seal-trim, Side				$ 83.72
10	W10207244		Cabinet Trim, Left Side				$ 213.58
11	WP489464		Screw, 8-18 X 1/2   (Replaces: 489464)			Immediately	$ 7.83
12	2309231		Contact, Mullion (bottom)				$ 51.72
12	2309230		Contact, Mullion (top)				$ 15.40
13	W11624204		Screw   (Replaces: 486194)				$ 14.02
14	2316899		Cover, Screw (2) (square)		Appelez-nous	-
15	2317078		Cover, Screw (2) (round)		Appelez-nous	-
16	WPW10121451		Nutsert (4)   (Replaces: W10121451)			Immediately	$ 7.65
