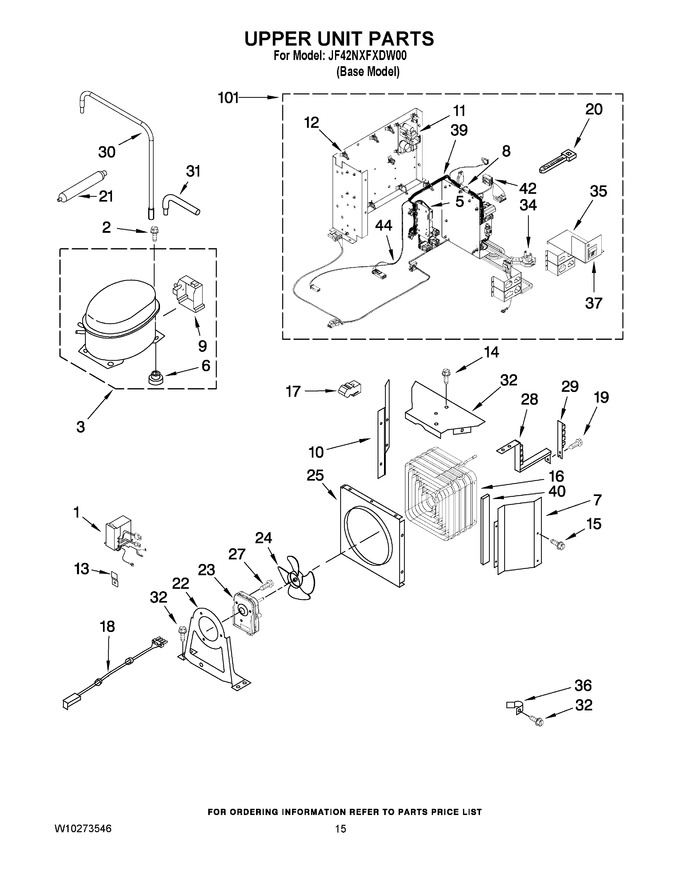

09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10629033		Inverter Box   (Replaces: W10133449)			Immediately	$ 443.45
2	876811		Screw, Compressor Mounting (4)   (Replaces: 489373)				$ 7.79
3	W10841139		Compressor (includes Items 6, 9 & 21) (also Order 876765 Tube Kit)   (Replaces: W10173296)			Immediately	$ 505.51
5	WPW10184634		Ctrl-elek, Yoda   (Replaces: W10184634)				$ 434.29
6	876811		Grommet, Mounting   (Replaces: 1100826)				$ 7.79
7	2309002		Support, Condenser (right)		Appelez-nous	-
8	WPW10200659		Ctrl-elek, Gemini   (Replaces: W10200659)			Immediately	$ 355.73
9	2215676		Terminal Cover				$ 94.36
10	2309001		Support, Condenser (left)		Appelez-nous	-
11	WPW10356040		Ctl-elek, Flash   (Replaces: W10120824)			Immediately	$ 322.82
12	WP2203075		Spacer (9)   (Replaces: 2203075)			Immediately	$ 18.81
13	2256328		Bracket, Inverter Box		Appelez-nous	-
14	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
16	2307998		Condenser				$ 510.05
17	2309431		Grommet (2)				$ 14.23
18	2310207		Wire, Jumper		Appelez-nous	-
19	WP489399		Screw   (Replaces: 489399)				$ 7.30
20	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 8.30
21	WPW10143759		Drier   (Replaces: W10175593)			Immediately	$ 30.78
22	WPW10136614		Bracket, Fan Motor   (Replaces: W10136614)				$ 83.07
23	W11578915		Motor, Fan   (Replaces: 2188875)			Immediately	$ 71.42
24	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 99.82
25	2003169		Orifice, Fan		Appelez-nous	-
27	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
28	2317031		Bracket, Vibration Condenser		Appelez-nous	-
29	2317030		Arm, Vibration Condenser		Appelez-nous	-
30	2307566		Tube, Transition (condenser/drier)				$ 17.84
31	W10528578		Tube, Process   (Replaces: 2194319)				$ 39.82
32	W11624204		Screw   (Replaces: 486194)				$ 14.72
34	2310196		Service Cord			Immediately	$ 88.52
35	W10209446		Bracket, Mounting (power Switch)		Appelez-nous	-
36	549193		Clamp,cord				$ 14.06
37	WP2266802		Switch, Power Disconnect   (Replaces: 2266802)				$ 109.08
39	W10209460		Wire Assy, Dc		Appelez-nous	-
40	2309432		Gasket, Condenser		Appelez-nous	-
42	W10209462		Wire Assy, Ac		Appelez-nous	-
44	W10209501		Wire Assy, Yoda		Appelez-nous	-
101	W10193384		Unit Assy, Controls				$ 575.34
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access(3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge (6.25 Oz. (r-134a))		Appelez-nous	-
