SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts

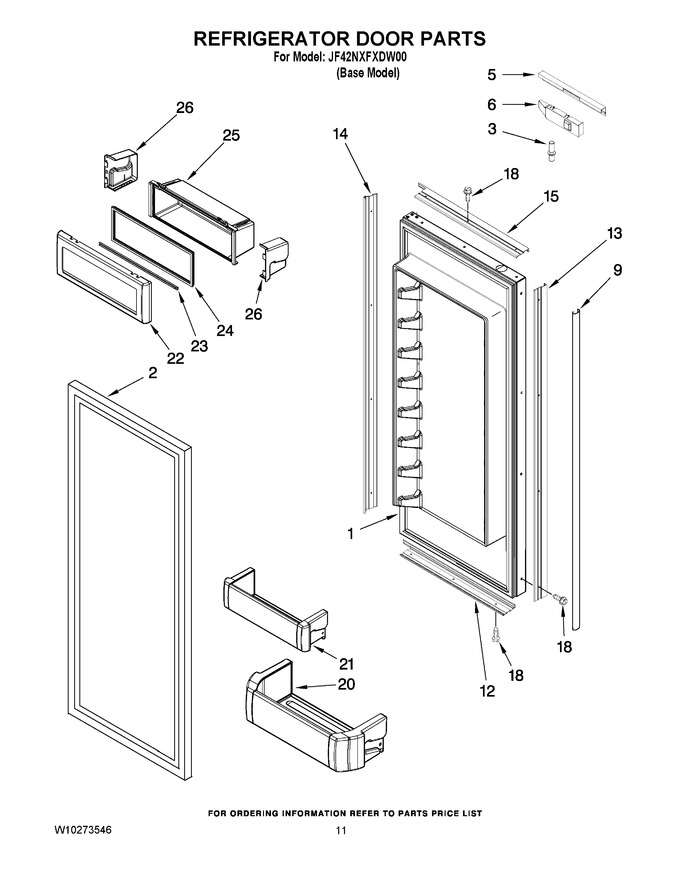

07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10138419		Door, Refrigerator (includes Item 2) (right)		Appelez-nous	-
1	W10138417		Door, Refrigerator (includes Item 2) (left)		Appelez-nous	-
2	8201809		Gasket, Door   (Replaces: 2268265)			Immediately	$ 246.99
3	W10234194		Pin-door, Top				$ 17.66
5	W10199873		Cover-door, Top				$ 141.97
6	W10197766		Insert, Door Arm (bottom)				$ 17.26
6	W10197748		Insert, Door Arm (top)				$ 18.83
9	W10209363		Cover-trim, Side		Appelez-nous	-
12	W10202473		Trim-door, Bottom		Appelez-nous	-
13	W10202478		Trim-door, Side (handle Side)				$ 115.91
14	W10202476		Trim-door, Side (hinge Side)		Appelez-nous	-
15	W10202471		Trim-door, Top				$ 166.67
18	W10825422		Screw, 8-15 X 1/2   (Replaces: 8281251)				$ 11.36
20	W10323746		Shelf, Door (2) (gallon)   (Replaces: 2222769)				$ 108.24
21	W10323598		Shelf, Door (4)   (Replaces: 2222772)				$ 104.79
22	WPW10131132		Door, Utility Bin   (Replaces: W10131132)				$ 75.81
23	2222795		Rail, Lid				$ 84.11
24	WP2222981		Gasket, Utility Bin   (Replaces: 2222981)				$ 214.40
25	WPW10323035		Bin, Utility   (Replaces: 2222921)				$ 84.93
26	WPW10323172		End Cap, Utility Bin (right Side)   (Replaces: 2222919)				$ 8.60
26	WPW10323173		End Cap, Utility Bin (left Side)   (Replaces: 2222920)				$ 8.60

    View Diagram in Separate Window       Print Part List
