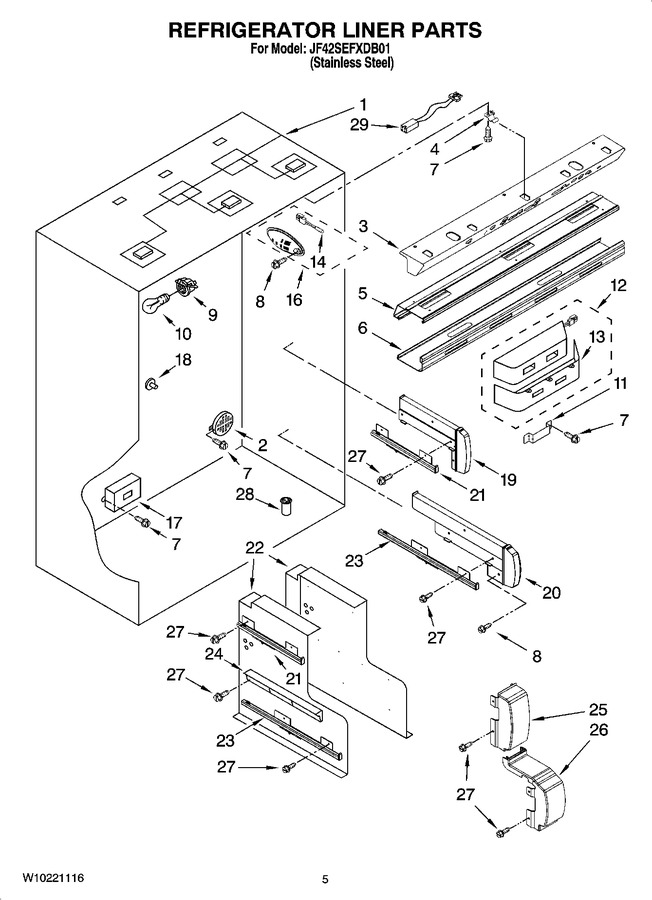

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 2317004 | Cover, Air Return (2) |
|
- | |||||
| 3 | W10481163 | Control Box (Replaces: W10183797) |
|
$ 1,402.31 | |||||
| 4 | 2317000 | Clip, Control Box |
|
- | |||||
| 5 | 2324969 | Bracket, Control Box |
|
- | |||||
| 6 | 2309248 | Shield, Light |
|
- | |||||
| 7 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487539) |
|
Immediately | $ 7.79 | ||||
| 8 | WP488163 | Screw (Replaces: 488163) |
|
$ 7.54 | |||||
| 9 | WPW10191429 | Socket, Light (3) (Replaces: 2223857) |
|
$ 8.38 | |||||
| 10 | WPA3073101 | Bulb, Light (3) (Replaces: 2326255) |
|
Immediately | $ 12.11 | ||||
| 11 | 2317917 | Clip, Diffuser Cover |
|
- | |||||
| 12 | 2320523 | Diffuser Assembly |
|
$ 100.60 | |||||
| 13 | 2320519 | Cover, Diffuser |
|
$ 112.02 | |||||
| 14 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 16 | WP2317844 | Thermistor Assy (Replaces: 2317844) |
|
$ 10.84 | |||||
| 17 | 2268249 | Diffuser, Crisper (complete)(2) |
|
$ 63.83 | |||||
| 18 | WP2196483 | Stud, Shelf (Replaces: 2196483) |
|
$ 10.35 | |||||
| 19 | 2268331 | Spacer, Crisper (left) |
|
- | |||||
| 19 | 2268332 | Spacer, Crisper (right) |
|
- | |||||
| 20 | 2306474 | Spacer, Deli (right) |
|
$ 16.87 | |||||
| 20 | 2306475 | Spacer, Deli (left) |
|
$ 16.87 | |||||
| 21 | 2302953 | Slide, Crisper Pan (right (2)) |
|
Immediately | $ 303.25 | ||||
| 21 | 2302952 | Slide, Crisper Pan (left (2)) |
|
Immediately | $ 302.94 | ||||
| 22 | 2320550 | Center Support (right Half) |
|
- | |||||
| 22 | 2320551 | Center Support (left Half) |
|
- | |||||
| 23 | 2302956 | Slide, Deli Pan (left (2)) |
|
$ 284.50 | |||||
| 23 | 2302957 | Slide, Deli Pan (right (2)) |
|
$ 217.46 | |||||
| 24 | 2314054 | Support, Deli Cover (2) |
|
- | |||||
| 25 | 2309083 | Cover, Center (crisper Pans) |
|
$ 79.85 | |||||
| 26 | 2318008 | Cover, Center (deli Pans) |
|
$ 184.72 | |||||
| 27 | WPW10001160 | Screw, 8-32 X 1/2 (Replaces: W10001160) |
|
$ 9.84 | |||||
| 28 | WP2210509 | Valve, Tube-body (Replaces: 2171931) |
|
$ 94.43 | |||||
| 29 | 2310164 | Wire, Jumper |
|
- |
