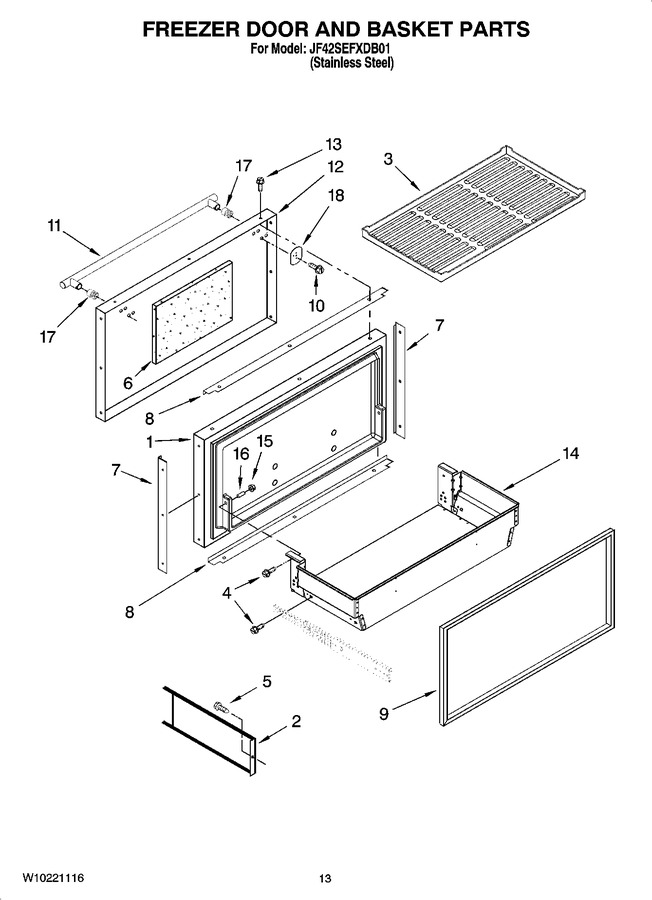

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10192032		Freezer Door (includes 9)		Appelez-nous	-
2	2317101		Divider, Basket (2)		Appelez-nous	-
3	W10665413		Mat, Basket   (Replaces: W10183770)				$ 270.14
4	W10135775		Screw, 5/16-24 X 1				$ 14.22
5	WP488234		Screw   (Replaces: W10135792)				$ 6.74
6	2309219		Filler, Foam				$ 264.40
7	2316788		Spacer, Door Edge - Side		Appelez-nous	-
8	2309221		Spacer, Door Edge Top & Bottom		Appelez-nous	-
9	2309216		Door Gasket, Magnetic				$ 303.57
10	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 7.76
11	WP12850909		Handle, Door   (Replaces: 12850909)				$ 278.06
12	W10183777		Skin, Door		Appelez-nous	-
13	WP8281250		Screw, 8-15 X 1/2   (Replaces: 8281250)				$ 10.88
14	2327532		Basket Assembly, Freezer		Appelez-nous	-
15	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 10.64
16	W10001190		Washer				$ 8.38
17	WPW10153450		Stud, Mounting Handle   (Replaces: W10153450)				$ 83.10
18	W10127710		Plate, Door-handle			Immediately	$ 24.70
