SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts

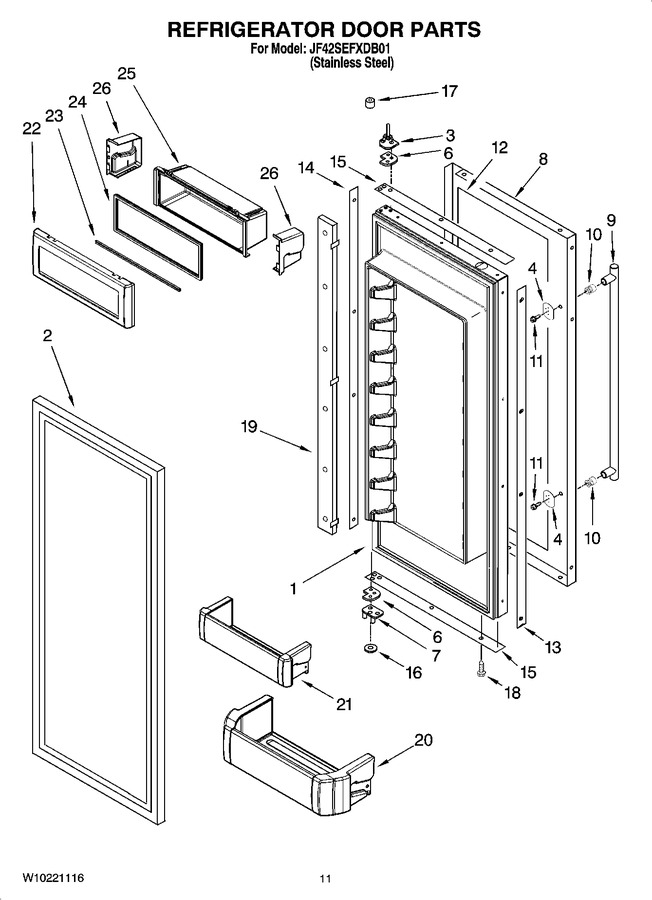

06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10192510		Door, Refrigerator (includes Item 2) (left)		Appelez-nous	-
1	W10192508		Door, Refrigerator (includes Item 2) (right)		Appelez-nous	-
2	8201809		Gasket, Door   (Replaces: 2268265)			Immediately	$ 246.99
3	W11673500		Hinge Assembly, Top   (Replaces: 2320642)			Immediately	$ 108.07
4	W10127710		Plate, Door-handle			Immediately	$ 24.70
6	W11673500		Spacer-hinge   (Replaces: 2316804)			Immediately	$ 108.07
7	2316752		Bottom Hinge Assembly (left)				$ 205.74
7	2316751		Bottom Hinge Assembly (right)		Appelez-nous	-
8	W10183779		Skin, Door		Appelez-nous	-
9	WP12850910		Handle, Door (2)   (Replaces: 12850910)				$ 275.89
10	WPW10153450		Stud, Mounting   (Replaces: W10153450)				$ 83.10
11	WP308544		Screw, 10-24 X 1/2   (Replaces: 308544)			Immediately	$ 7.76
12	2309218		Filler, Foam		Appelez-nous	-
13	2314068		Spacer, Door Edge (handle Side)		Appelez-nous	-
14	2316768		Spacer, Door Edge (hinge Side)		Appelez-nous	-
15	2309204		Spacer, Door Edge (top / Bottom)		Appelez-nous	-
16	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 11.20
17	W11500952		Bushing, Top Hinge   (Replaces: 2316760)			Immediately	$ 33.09
18	WP8281250		Screw, 8-15 X 1/2   (Replaces: 8281250)				$ 10.88
19	2307938		Mullion Assembly				$ 144.52
20	W10323746		Shelf, Door (2) (gallon)   (Replaces: 2222769)				$ 103.09
21	W10323598		Shelf, Door (4)   (Replaces: 2222772)				$ 99.80
22	WPW10131132		Door, Utility Bin   (Replaces: W10131132)				$ 72.20
23	2222795		Rail, Lid				$ 80.10
24	WP2222981		Gasket, Utility Bin   (Replaces: 2222981)				$ 204.19
25	WPW10323035		Bin, Utility   (Replaces: 2222921)				$ 80.89
26	WPW10323172		End Cap, Utility Bin (right Side)   (Replaces: 2222919)				$ 8.19
26	WPW10323173		End Cap, Utility Bin (left Side)   (Replaces: 2222920)				$ 8.19

    View Diagram in Separate Window       Print Part List
