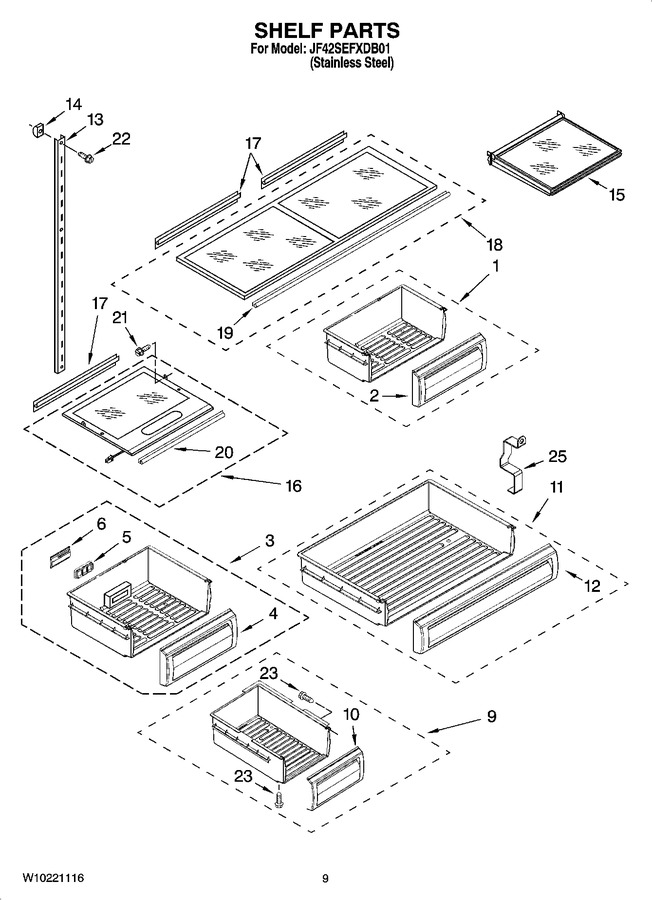

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2268171		Crisper Pan Assembly (includes 2) (right)		Appelez-nous	-
1	2268173		Crisper Pan Assembly (includes 2) (left)				$ 75.21
2	WP2256247		Front, Crisper Pan   (Replaces: 2256247)				$ 126.88
3	2317941		Deli Pan Assembly (incl. 4, 5 & 6) (right)		Appelez-nous	-
3	2317940		Deli Pan Assembly (incl. 4, 5 & 6) (left)		Appelez-nous	-
4	WP2256365		Front, Deli Pan   (Replaces: 2256365)				$ 165.25
5	2307810		Duct, Deli Pan		Appelez-nous	-
6	2317939		Air Deflector		Appelez-nous	-
9	2306174		Ice Pan Assembly (includes 10)				$ 147.41
10	2306175		Front, Ice Pan				$ 91.39
11	2327511		Freezer Pan Assembly (includes 12)		Appelez-nous	-
12	WP2256367		Front, Freezer Pan   (Replaces: 2256367)				$ 174.06
13	2327314		Ladder, Shelf (4)		Appelez-nous	-
14	520965		Support, Ladder				$ 29.86
15	W10183800		Shelf (4)		Appelez-nous	-
16	W10757993		Cover, Deli Bin (right)   (Replaces: 2320666)				$ 811.84
16	W10757973		Cover, Deli Bin (left)   (Replaces: 2320664)				$ 770.11
17	2309400		Gasket, Rear		Appelez-nous	-
18	W11430640		Cover, Crisper   (Replaces: W10183754)				$ 326.39
19	2309396		Gasket, Front (crisper Cover)		Appelez-nous	-
20	2309395		Gasket, Front (2) (deli Cover)		Appelez-nous	-
21	W10825422		Screw   (Replaces: 8281251)				$ 10.82
22	2006475		Screw		Appelez-nous	-
23	WP488787		Screw, 8-18 X 1/2   (Replaces: 488886)				$ 10.58
25	2327394		Locking Clip, Bin (left)		Appelez-nous	-
25	2327393		Locking Clip, Bin (right)				$ 61.29
