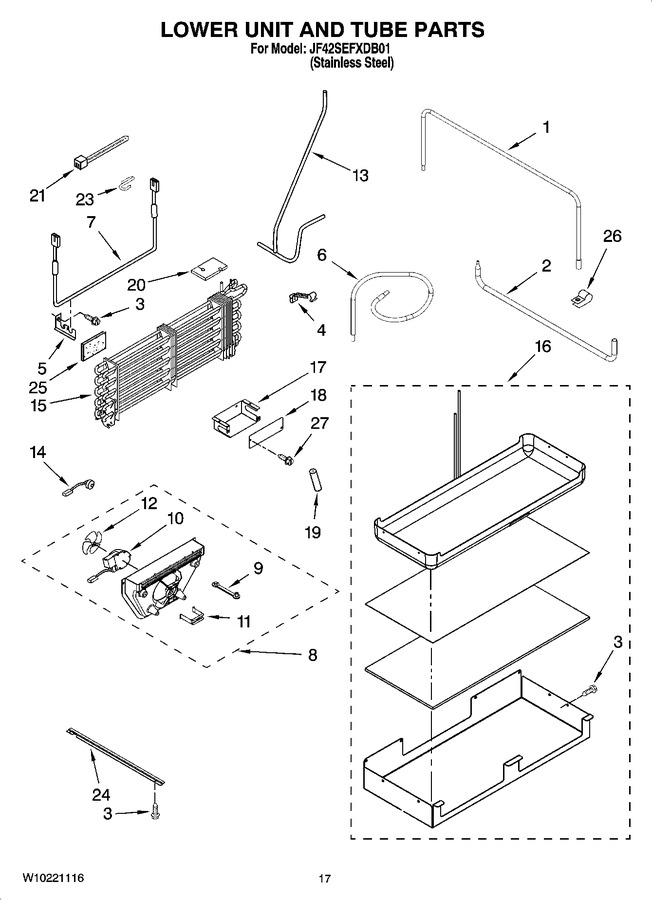

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2309072 | Tube, Transition (condenser) |
|
- | |||||
| 2 | W10388653 | Tube, Transition (drier/restrictor) (Replaces: 2309070) |
|
Immediately | $ 38.55 | ||||
| 3 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.02 | |||||
| 4 | 2307944 | Clip |
|
- | |||||
| 5 | 2307945 | Bracket, Mounting |
|
- | |||||
| 6 | 2309076 | Tube, Suction |
|
$ 136.59 | |||||
| 7 | W10219166 | Heater, Defrost (Replaces: 2306176) |
|
$ 155.36 | |||||
| 8 | 2306178 | Scroll Assembly |
|
- | |||||
| 9 | W11669856 | Grommet, Motor (Replaces: 2223986) |
|
Immediately | $ 15.17 | ||||
| 10 | 2259385 | Motor, Fan |
|
$ 84.74 | |||||
| 11 | 8201663 | Retainer, Fan Motor (Replaces: 2223733) |
|
$ 151.69 | |||||
| 12 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 13 | 2309073 | Tube, Discharge (Replaces: W10121368) |
|
$ 80.16 | |||||
| 14 | W10139165 | Defrost Bi-metal |
|
$ 85.95 | |||||
| 15 | W10195924 | Evaporator (includes 5 & 7) |
|
$ 344.67 | |||||
| 16 | W11623101 | Drain Pan Assembly (Replaces: W10196999) |
|
Immediately | $ 375.26 | ||||
| 17 | W10153595 | Cover, Box |
|
- | |||||
| 18 | W10151288 | Cover, Wiring |
|
- | |||||
| 19 | 2215648 | Dampener, Heater |
|
$ 12.58 | |||||
| 20 | 2306180 | Block, Evaporator Water Filter |
|
- | |||||
| 21 | WPW10339879 | Wire Tie (Replaces: 2155774) |
|
$ 7.90 | |||||
| 23 | 2317920 | Clip, Heater |
|
- | |||||
| 24 | 2320554 | Bracket, Drain Pan |
|
- | |||||
| 25 | W11553819 | Insulation-sound (Replaces: 2169104) |
|
Immediately | $ 14.07 | ||||
| 26 | 488937 | Clamp, Tube |
|
- | |||||
| 27 | WP489069 | Screw, 8-18 X 1/2 (Replaces: 304392) |
|
Immediately | $ 7.86 |
