SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts

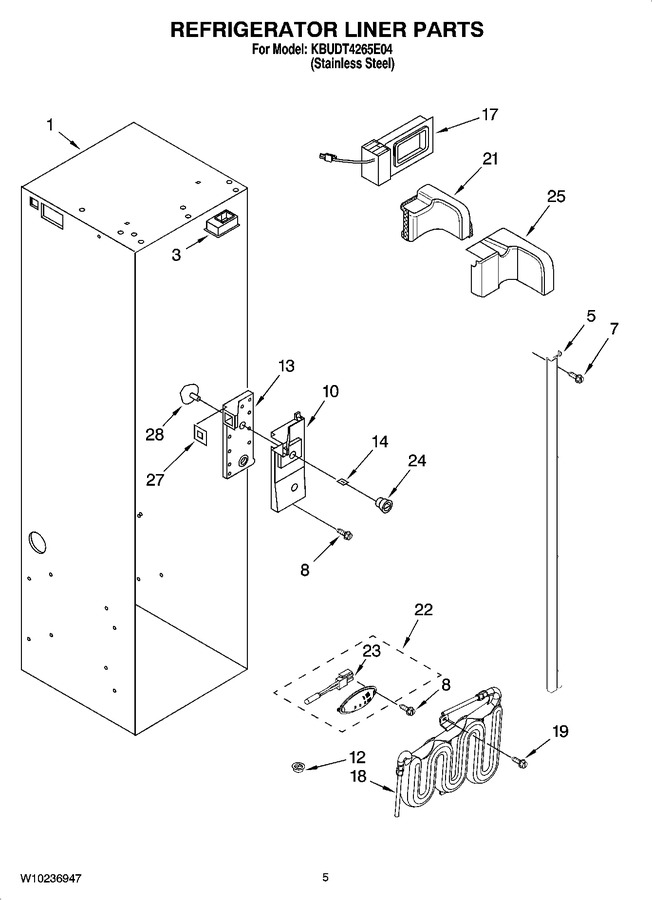

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	2208970		Air Duct				$ 151.40
5	2256225		Ladder, Shelf (right Side)		Appelez-nous	-
5	2222480		Ladder, Shelf (left Side)		Appelez-nous	-
7	W10678207		Screw   (Replaces: 2001377)				$ 16.43
8	WP488729		Screw   (Replaces: 487539)			Immediately	$ 8.28
10	2222617		Meat Pan, Air Duct Cover		Appelez-nous	-
12	2171846		Release Valve				$ 18.99
13	2000337		Meat Pan, Air Duct		Appelez-nous	-
14	2003841		Retainer, Knob		Appelez-nous	-
17	WP2221296		Air Baffle Assembly   (Replaces: 2221296)			Immediately	$ 412.58
18	W10645131		Reservoir   (Replaces: 2327509)				$ 288.33
19	488280		Screw		Appelez-nous	-
21	WP2309222		Diffuser Assembly   (Replaces: 2309222)				$ 102.07
22	WP2317844		Thermistor Assy   (Replaces: 2317844)				$ 11.38
23	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
24	2003811		Knob, Control Meat Pan		Appelez-nous	-
25	2309087		Cover, Diffuser		Appelez-nous	-
27	2221175		Seal, Air Duct		Appelez-nous	-
28	1112218		Damper Control, Meat Pan				$ 8.51

    View Diagram in Separate Window       Print Part List
