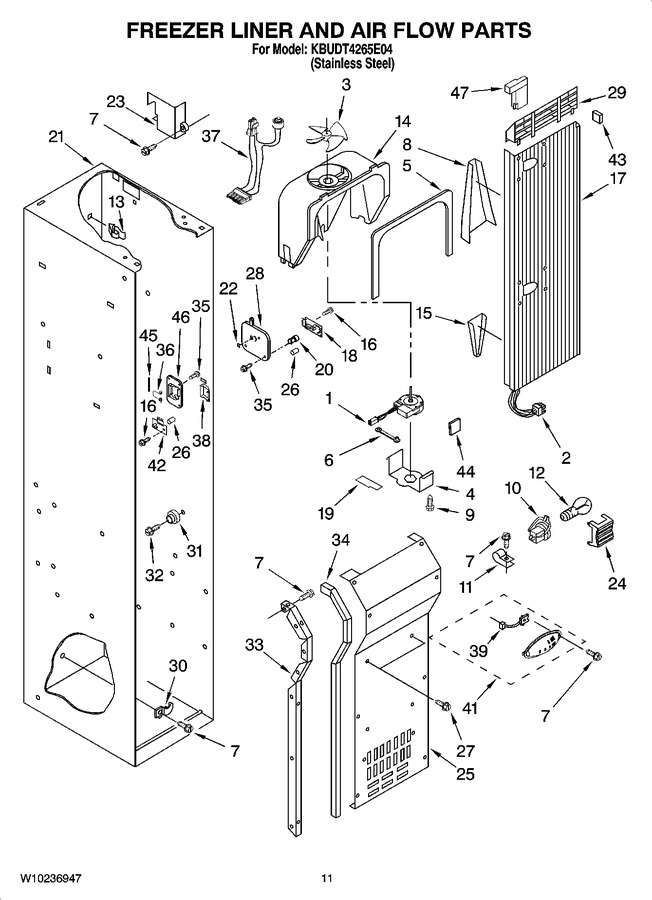

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2259385 | Fan Motor |
|
$ 84.74 | |||||
| 2 | W10123559 | Harness, Wire |
|
- | |||||
| 3 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 4 | 8201663 | Retainer, Fan Motor (Replaces: 2223733) |
|
$ 159.27 | |||||
| 5 | WP2302817 | Gasket, Cover (Replaces: 2302817) |
|
$ 101.04 | |||||
| 6 | W11669856 | Grommet (Replaces: 2223986) |
|
Immediately | $ 15.93 | ||||
| 7 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 8 | 2003925 | Deflector, Air Duct |
|
- | |||||
| 9 | WP489128 | Screw, Ground (Replaces: 488500) |
|
$ 11.40 | |||||
| 10 | 4387478 | Socket, Light (2) (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 11 | 488937 | Clamp, Nylon |
|
- | |||||
| 12 | W10887190 | Light Bulb (Replaces: 2257556) |
|
Immediately | $ 19.23 | ||||
| 13 | 2215823 | Clip-air, Duct |
|
$ 10.94 | |||||
| 14 | WP2182120 | Scroll, Fan (Replaces: 2182120) |
|
Immediately | $ 117.57 | ||||
| 15 | 2003928 | Deflector, Air Duct |
|
- | |||||
| 16 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.79 | |||||
| 17 | 2252378 | Air Duct |
|
- | |||||
| 18 | W11629974 | P.c. Board, Receiver (Replaces: 2255114) |
|
Immediately | $ 421.12 | ||||
| 19 | 2209066 | Block, Fan Scroll (left) |
|
- | |||||
| 19 | 2209480 | Block, Fan Scroll (right) |
|
- | |||||
| 20 | WP2198643 | Lens (Replaces: 2198643) |
|
$ 8.59 | |||||
| 22 | 2259499 | Slide, Icemaker Shut Off |
|
- | |||||
| 23 | 2215718 | Cover, Air Outlet |
|
- | |||||
| 24 | 2302848 | Light Shield |
|
- | |||||
| 25 | W10158003 | Cover, Evaporator |
|
- | |||||
| 26 | 2198665 | Tube, P.c. Board |
|
$ 21.52 | |||||
| 27 | WP488729 | Screw (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 28 | 2259496 | Cover, Receiver |
|
- | |||||
| 29 | 1112852 | Deflector, Air Duct |
|
$ 8.57 | |||||
| 30 | 1112260 | Support,evaporator |
|
- | |||||
| 31 | WP2196483 | Shelf, Stud (20) (Replaces: 2196483) |
|
$ 10.87 | |||||
| 32 | W10191952 | Screw |
|
$ 5.65 | |||||
| 33 | 2221107 | Evaporator, Cover Rail (left Side) |
|
- | |||||
| 33 | 2259355 | Evaporator, Cover Rail (right Side) |
|
$ 126.54 | |||||
| 34 | 2220904 | Gasket (2) Evaporator Cover |
|
$ 23.55 | |||||
| 35 | WPW10142283 | Screw (Replaces: 8281185) |
|
$ 10.33 | |||||
| 36 | WP2198635 | Spring (Replaces: 2198635) |
|
$ 91.43 | |||||
| 37 | W10139189 | Harness, Evap Fan (includes Item 55) |
|
$ 168.77 | |||||
| 38 | WP2198633 | Flipper (Replaces: 2198633) |
|
Immediately | $ 50.68 | ||||
| 39 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 41 | WP2317844 | Thermistor Assy (Replaces: 2317844) |
|
$ 11.38 | |||||
| 42 | W11629974 | P.c. Board Emitter (Replaces: 2220398) |
|
Immediately | $ 421.12 | ||||
| 43 | 1112869 | Gasket, Air Duct |
|
- | |||||
| 44 | W11553819 | Insulation (4) (Replaces: 2220241) |
|
Immediately | $ 14.77 | ||||
| 45 | WP2198634 | Pin (Replaces: 2198634) |
|
$ 18.65 | |||||
| 46 | 2259487 | Cover, Emitter |
|
$ 68.37 | |||||
| 47 | 2317827 | Block, Return Air |
|
- |
