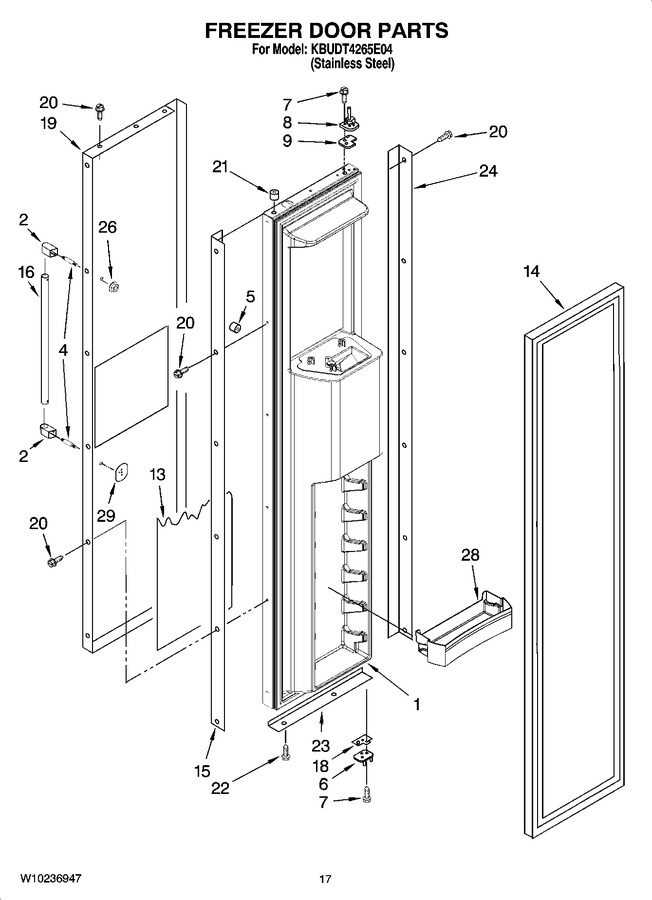

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10194434		Freezer Door, Service (includes Dispenser Items)		Appelez-nous	-
2	W10142391		Endcap, Handle (bottom)		Appelez-nous	-
2	W10142393		Endcap, Handle (top)		Appelez-nous	-
4	W10143356		Stud-double End		Appelez-nous	-
5	2252354		Spacer		Appelez-nous	-
6	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
9	W11673500		Spacer-door, Top   (Replaces: 2316804)			Immediately	$ 130.37
13	W10128099		Filler, Door		Appelez-nous	-
14	WP2266905		Door Gasket, Magnetic   (Replaces: 2222814)				$ 329.66
15	2309060		Spacer, Door-skin (handle Side)		Appelez-nous	-
16	W10122858		Handle, Door		Appelez-nous	-
18	W11673500		Door, Spacer   (Replaces: 2316804)			Immediately	$ 130.37
19	W10136876		Skin, Door		Appelez-nous	-
20	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 11.42
21	2005433		Spacer, Door-skin (top)				$ 23.33
22	W10759522		Screw   (Replaces: 488568)				$ 8.24
23	2257385		Spacer, Door-skin (bottom)		Appelez-nous	-
24	W10142296		Spacer, Door-skin (hinge Side)		Appelez-nous	-
26	W10151686		Nut M6-1 X 6.0 Hf		Appelez-nous	-
28	2222609		Bin, Shelf F.c. (3)		Appelez-nous	-
29	W10127710		Plate, Door-handle			Immediately	$ 25.94
