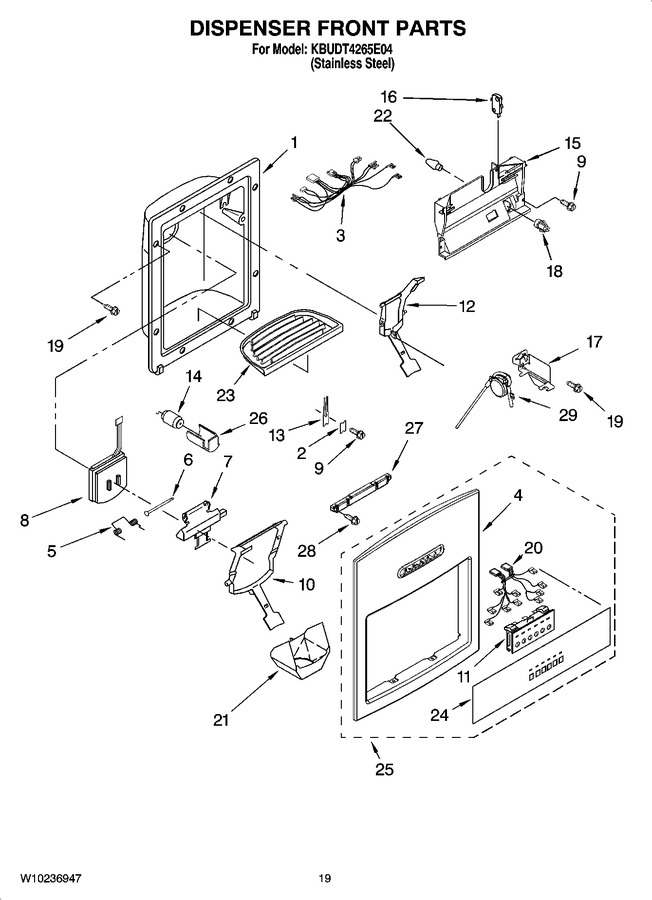

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 12.54 | |||||
| 3 | W10139147 | Wire Assembly |
|
- | |||||
| 5 | WPW10224328 | Spring, Torsion (Replaces: 2304772) |
|
$ 87.40 | |||||
| 6 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 15.31 | |||||
| 7 | 2304355 | Ice Door Mechanism |
|
- | |||||
| 8 | WP2180353 | Door, Ice (Replaces: 2180353) |
|
Immediately | $ 26.83 | ||||
| 9 | WP3400906 | Screw (Replaces: 489000) |
|
$ 9.05 | |||||
| 10 | 2222558 | Lever, Ice Dispenser |
|
- | |||||
| 12 | 2222559 | Lever, Water Dispenser |
|
- | |||||
| 13 | WP2194719 | Spring, Lever (Replaces: 2194719) |
|
Immediately | $ 12.36 | ||||
| 14 | 2205686 | Delay Mechanism |
|
- | |||||
| 15 | WP2180226 | Bracket, Control (Replaces: 2183771) |
|
Immediately | $ 26.97 | ||||
| 16 | WP2162361 | Switch (2) (Replaces: 2162361) |
|
Immediately | $ 28.71 | ||||
| 17 | 2259209 | Bracket, Anti-drip Valve |
|
$ 91.43 | |||||
| 18 | 2180200 | Lamp Holder |
|
$ 103.59 | |||||
| 19 | 00487294 | Screw (Replaces: 487294) |
|
$ 175.09 | |||||
| 20 | 2310198 | Harness, Switch Jumper Assembly |
|
- | |||||
| 21 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 30.02 | ||||
| 22 | WP22002263 | Light Bulb (Replaces: 3406124) |
|
Immediately | $ 14.85 | ||||
| 23 | 2222514B | Grille, Overflow |
|
- | |||||
| 25 | 2324903 | Front Cover Assembly (includes Items- 4,11,20,24 & 30) |
|
- | |||||
| 26 | 2252127 | Sleeve, Delay Mechanism |
|
$ 22.00 | |||||
| 27 | 2306077 | Spacer, Dispenser Cover |
|
- | |||||
| 28 | WP8281163 | Screw (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 29 | 2320669 | Valve, Anti-drip |
|
$ 58.39 |
