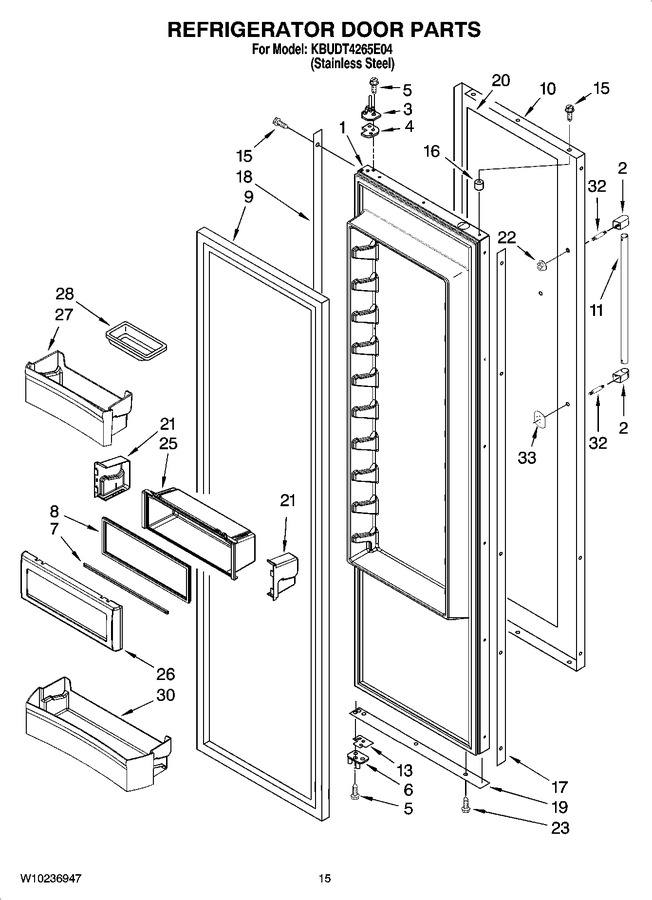

KBUDT4265E04 | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	W10193490	Refrigerator Door Panel (includes Item 9)	Appelez-nous	-
2	W10142393	Endcap, Handle (top)	Appelez-nous	-
2	W10142391	Endcap, Handle (bottom)	Appelez-nous	-
3	W11724512	Hinge Assembly, Top (Replaces: 2266854)			$ 312.50
4	W11673500	Spacer-door, Top (Replaces: 2316804)		Immediately	$ 130.37
5	W11474472	Screw (Replaces: 489282)		Immediately	$ 8.63
6	2302878	Hinge Assembly, Bottom		Immediately	$ 91.01
7	W11448696	Rail, Lid (Replaces: 2222796)			$ 172.93
8	W11448696	Gasket, Utility Bin (Replaces: 2222982)			$ 172.93
9	WP2266902	Door Gasket, Magnetic (Replaces: 2222811)			$ 330.30
10	W10130584	Skin, Door	Appelez-nous	-
11	W10122858	Handle, Door	Appelez-nous	-
13	W11673500	Door, Spacer Bottom (Replaces: 2316804)		Immediately	$ 130.37
15	WP8281250	Screw, 8-15 X .500 Stainless Steel (Replaces: 8281250)			$ 11.42
16	2005433	Spacer, Door-skin (top)			$ 23.33
17	2309060	Spacer, Door-skin (handle Side)	Appelez-nous	-
18	W10142296	Spacer, Door-skin (hinge Side)	Appelez-nous	-
19	2004934	Spacer, Door-skin (bottom)	Appelez-nous	-
20	W10127977	Filler, Door	Appelez-nous	-
21	WPW10323173	End Cap (left Side) (Replaces: 2222920)			$ 8.60
21	WPW10323172	End Cap (right Side) (Replaces: 2222919)			$ 8.60
22	W10151686	Nut M6-1 X 6.0 Hf	Appelez-nous	-
23	W10759522	Screw (Replaces: 488568)			$ 8.24
25	W10323042	Bin, Utility (center) (Replaces: 2222922)			$ 223.93
26	W11553221	Door, Utility Bin (Replaces: 2257616)		Immediately	$ 69.64
27	2252364	Door Shelf	Appelez-nous	-
28	2165792	Butter Tray	Appelez-nous	-
30	2222477	Shelf, Door	Appelez-nous	-
32	W10143356	Stud-double End	Appelez-nous	-
33	W10127710	Plate, Door-handle		Immediately	$ 25.94
