Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 242654 Assembly (use W/242744 Motor) Appelez-nous -
1 242653 Switch Assembly (use W/242743 Motor) Appelez-nous -
2 242743 Motor (includes Illus. 1) Appelez-nous -
2 242744 Motor (includes Illus. 1) Appelez-nous -
3 242655 Screw, 1/4-20 X 1/2 (4) Appelez-nous -
4 242656 Drive Mount Assembly Appelez-nous -
5 242657 Locknut; 10-32 (4) Appelez-nous -
6 242658 Gear, Drive Appelez-nous -
7 242659 Pin, Slotted Spring Appelez-nous -
8 242660 Washer, Wave Appelez-nous -
9 242661 Washer, Thrust Appelez-nous -
10 242662 Drive Gear Assembly Appelez-nous -
11 242663 Clip, Ring Appelez-nous -
12 242664 Chain, Drive Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

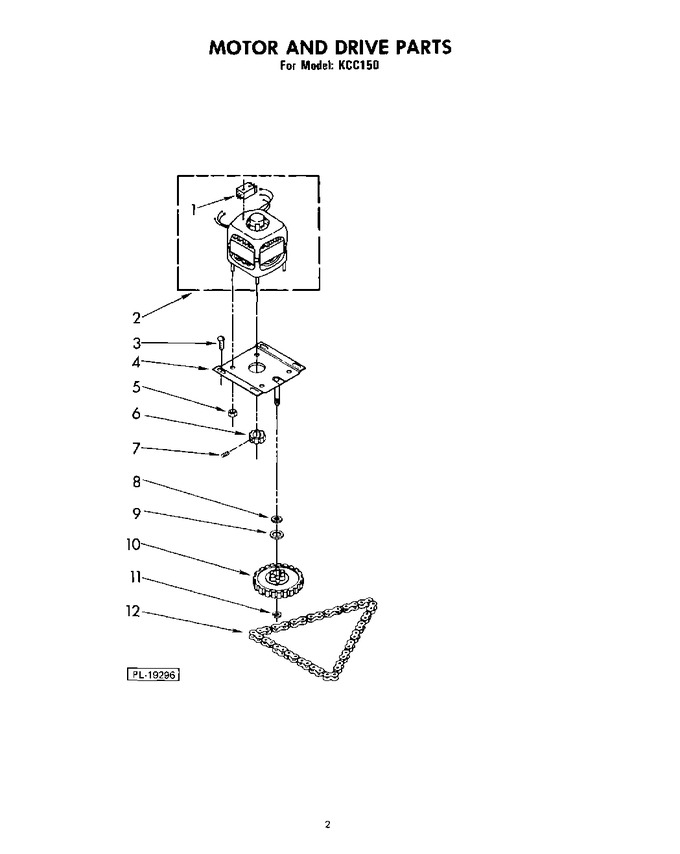

Diagram for KCC150
