02 - Motor And Drive (kcc150)


03 - Motor And Drive (kcc151)


04 - Frame (kcc150)


05 - Frame (kcc151)


06 - Powerscrew And Ram (kcc150)


07 - Powerscrew And Ram (kcc151)


08 - Container (kcc150)


09 - Container (kcc151)


10 - Panel And Control (kcc150)


11 - Panel And Control (kcc151)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

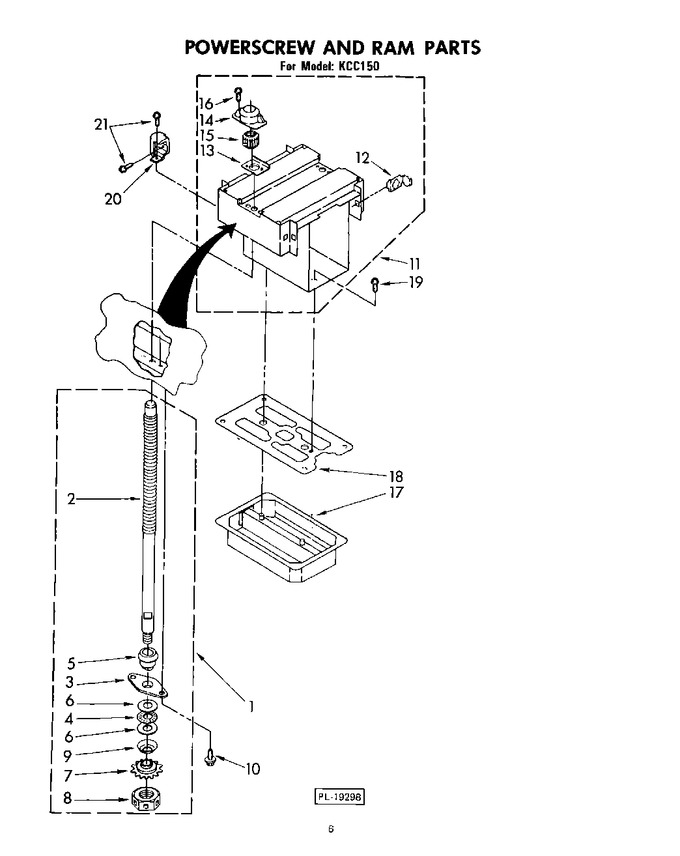

1	242695		Screw, Power Complete Assembly (2)		Appelez-nous	-
11	242696		Ram Assembly		Appelez-nous	-
16	242693		Screw 10-24 X 3/8 (4)		Appelez-nous	-
17	242697		Cover, Ram		Appelez-nous	-
18	242698		Wiper, Ram		Appelez-nous	-
19	242699		Screw, 10-16 X 1/2		Appelez-nous	-
20	242700		Block, Container Stop		Appelez-nous	-
21	242701		Screw, 8-18 X 3/8 (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
