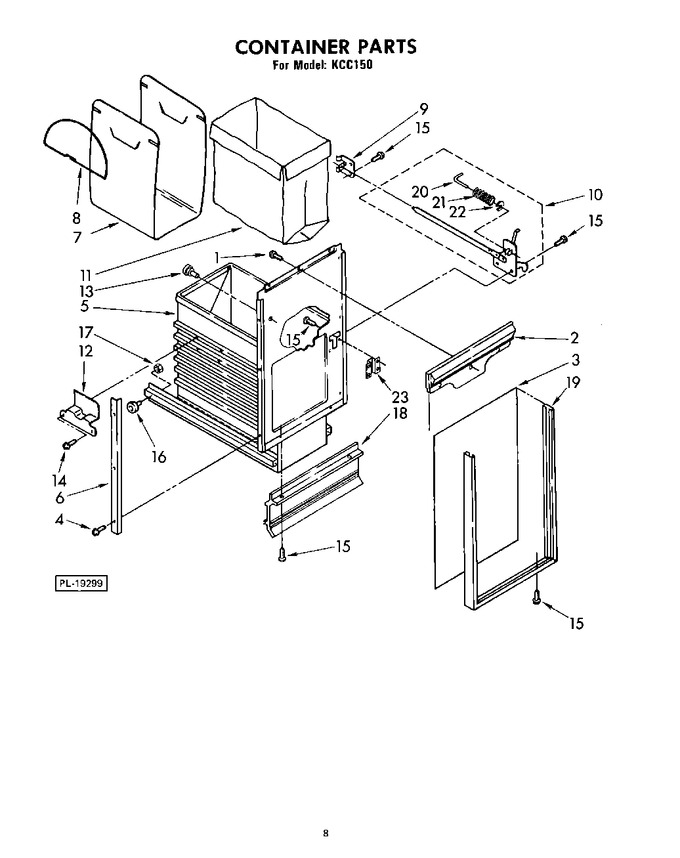

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242703		Screw, 8-18 X 1/2		Appelez-nous	-
2	242704		Handle, Container		Appelez-nous	-
3	242705		Panel (white & Black)		Appelez-nous	-
3	242706		Panel (harvest Gold & Almond)		Appelez-nous	-
4	242709		Screw, 6-20 X 3/8		Appelez-nous	-
5	242710		Container Assembly		Appelez-nous	-
6	242711		Plate, Trim		Appelez-nous	-
7	242712		Carrier, Bag (includes Illus. 8)		Appelez-nous	-
8	242398		Handle, Bag Carrier		Appelez-nous	-
9	242713		Guide, Rear Latch		Appelez-nous	-
10	242714		Latch Assembly		Appelez-nous	-
12	242715		Cam, Actuator		Appelez-nous	-
13	242716		Bumper, Container (2)		Appelez-nous	-
14	242717		Screw, 8-18 X 1/2		Appelez-nous	-
15	242673		Screw, 8 X 1/2ab		Appelez-nous	-
16	242719		Container, Bearing Roller		Appelez-nous	-
17	242720		Locknut, 3/8-24		Appelez-nous	-
18	242721		Toe Plate		Appelez-nous	-
19	242722		Trim, Container (front)		Appelez-nous	-
23	242718		Plate, Latch		Appelez-nous	-
