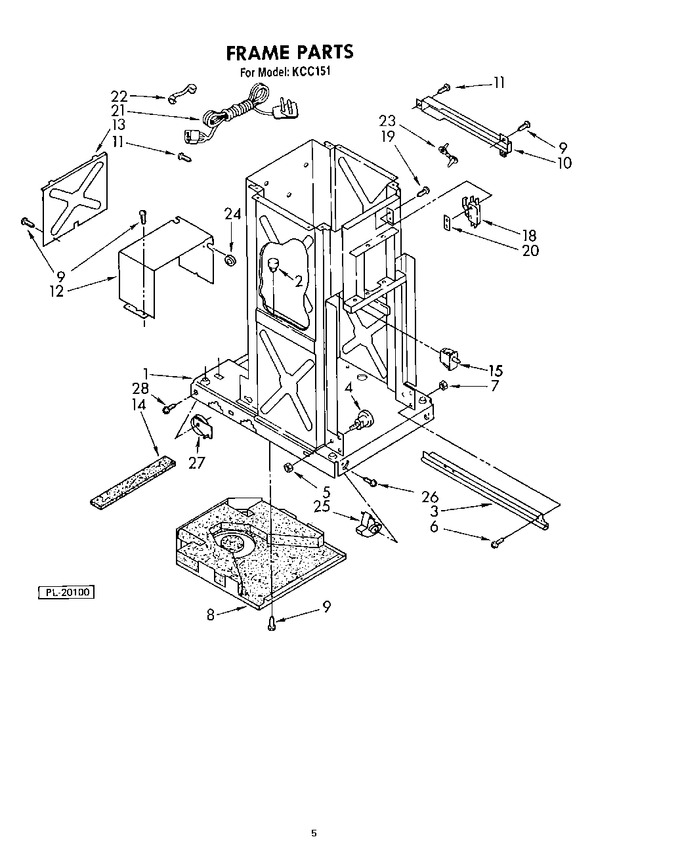

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Frame (not A Serviceable Part)		Appelez-nous	-
2	242665		Bumper (4)		Appelez-nous	-
3	242666		Frame, Slide (r.h.)		Appelez-nous	-
3	242667		Frame, Slide (l.h.)		Appelez-nous	-
4	242668		Bearing, Roller (2)		Appelez-nous	-
5	242669		Locknut, 3/8-24 (2)		Appelez-nous	-
6	242670		Screw, 6-32 X 3/8 (4)		Appelez-nous	-
7	242671		Nut, 6-32 (4)		Appelez-nous	-
8	242672		Pan Assembly		Appelez-nous	-
9	242673		Screw, 8 X 1/2ab		Appelez-nous	-
10	242674		Shield, Harness		Appelez-nous	-
11	242675		Screw, 8-32 X 5/16		Appelez-nous	-
12	243258		Cover, Motor		Appelez-nous	-
13	242677		Plate, Motor Cover		Appelez-nous	-
14	242678		Barrier, Glass		Appelez-nous	-
15	243259		Switch, Drawer Safety		Appelez-nous	-
18	242682		Switch, Top Limit & Directional		Appelez-nous	-
19	242683		Screw, 6-20 X 1 (2)		Appelez-nous	-
20	242684		Plate, Nut		Appelez-nous	-
21	242685		Cord, Power		Appelez-nous	-
22	242686		Bushing, Cord		Appelez-nous	-
23	242687		Clamp, Wire		Appelez-nous	-
24	242688		Grommet, Motor Cover		Appelez-nous	-
25	242689		Leveler (2)		Appelez-nous	-
26	242690		Screw & Washer Assembly (2)		Appelez-nous	-
27	242691		Wheel Assembly, L.h.		Appelez-nous	-
27	242692		Wheel Assembly, R.h.		Appelez-nous	-
28	242693		Screw, 10-24 X 3/8 (2)		Appelez-nous	-
