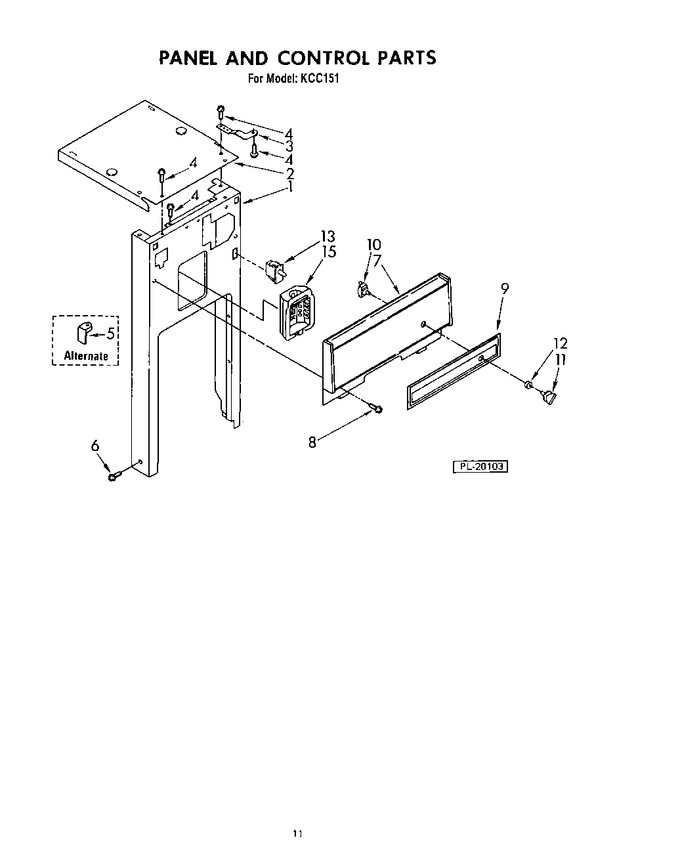

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 243264 | Panel, Front Frame |
|
$ 17.33 | |||||
| 2 | 242725 | Cover, Top (recessed) |
|
- | |||||
| 3 | 242726 | Bracket, Retainer (r.h.) |
|
- | |||||
| 3 | 242727 | Bracket, Retainer (l.h.) |
|
- | |||||
| 4 | 242728 | Screw, 8-18 X 1/2 |
|
- | |||||
| 5 | 242729 | Bracket, Mounting (2) (auxiliary) |
|
- | |||||
| 6 | 242673 | Screw, 8 X 1/2ab (6) |
|
- | |||||
| 7 | 242730 | Escutcheon |
|
- | |||||
| 8 | 242731 | Screw, 6-20 X 3/8 (2) |
|
- | |||||
| 9 | 242732 | Insert, Escutcheon |
|
- | |||||
| 10 | 243266 | Switch, Rotary Start-run |
|
- | |||||
| 11 | 242734 | Knob, Rotary Switch |
|
- | |||||
| 12 | 242735 | Nut, Rotary Switch |
|
- | |||||
| 13 | 243256 | Switch, Drawer Tilt |
|
- | |||||
| 15 | 242723 | Compartment, Air Flow |
|
- |
