SELECT A DIAGRAM

02 - Control Panel


03 - Latch


04 - Liner


05 - Door


06 - Cabinet , Literature And Optional


07 - Compartment

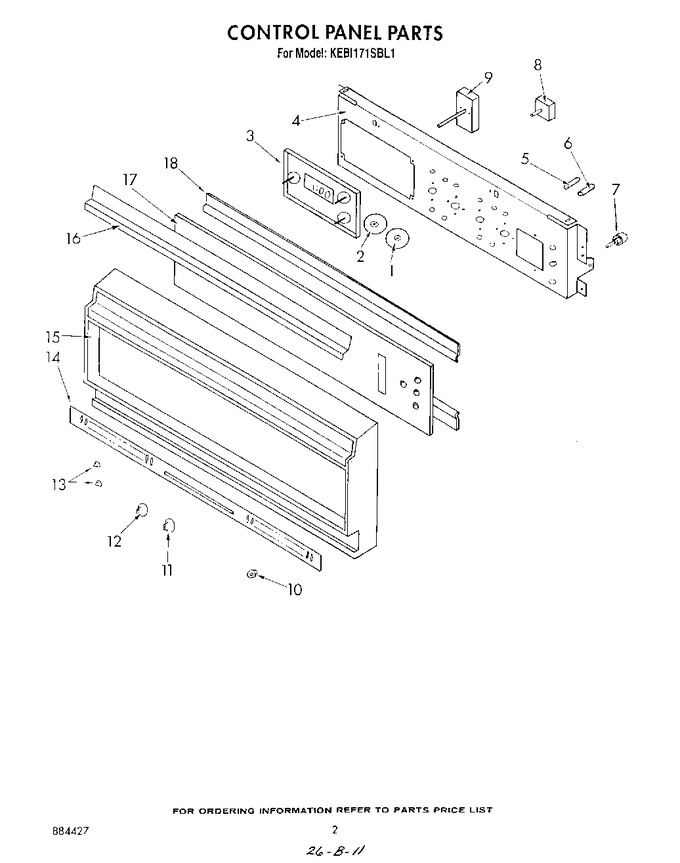

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4163809		Thermostat Disc		Appelez-nous	-
2	4163799		Selector Disc		Appelez-nous	-
3	4173071		Clock		Appelez-nous	-
4	4164218		Panel, Control		Appelez-nous	-
5	4168597		Indicator Light,		Appelez-nous	-
6	4163869		Indicator Light (2)		Appelez-nous	-
7	4167332		Oven Light Switch		Appelez-nous	-
8	4168451		Selector Switch		Appelez-nous	-
9	4164361		Thermostat		Appelez-nous	-
10	4169372		Bezel, Switch		Appelez-nous	-
11	WP4168403		Knob, Thermostat (2)   (Replaces: 4168403)				$ 20.04
12	3177121		Knob, Clock (3)		Appelez-nous	-
13	3177122		Knob, Clock		Appelez-nous	-
14	4168717		Vent Insert		Appelez-nous	-
15	4164363		Control Frame		Appelez-nous	-
16	4173307		Top Insert		Appelez-nous	-
17	4173310		Control Panel Glass		Appelez-nous	-
18	4167590		Retainer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
