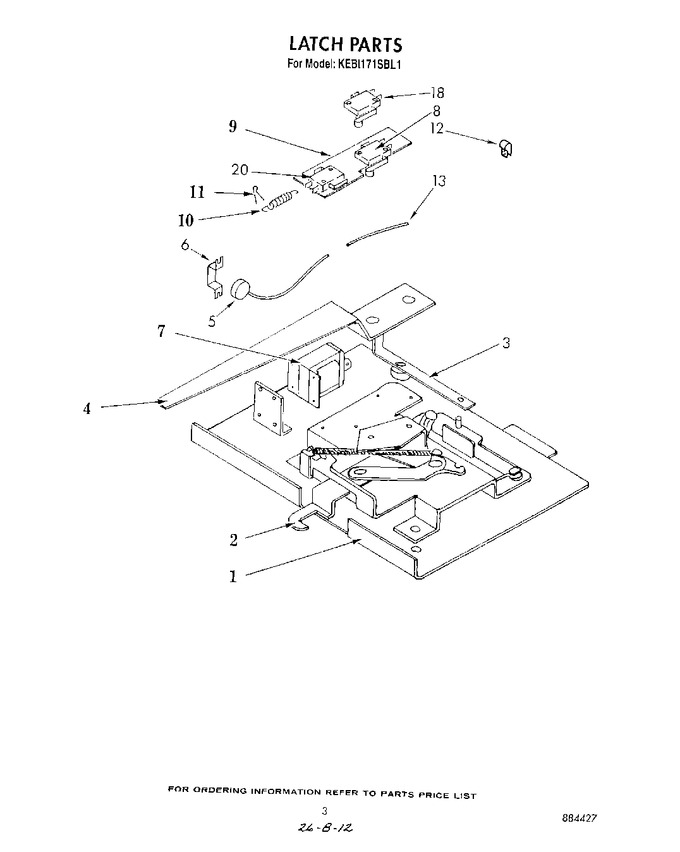

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4159287		Screw (6)		Appelez-nous	-
1	4168063		Plate, Latch		Appelez-nous	-
1	4159109		Nut 10-24 (6)		Appelez-nous	-
2	4159186		Screw (4)		Appelez-nous	-
2	4168538		Mechanism, Latch		Appelez-nous	-
3	4168058		Ring, Retainer		Appelez-nous	-
3	4168554		Screw		Appelez-nous	-
3	4168553		Spacer		Appelez-nous	-
3	4159603		Washer		Appelez-nous	-
4	3177965		Lever, Latch		Appelez-nous	-
5	4173007		Thermal Switch		Appelez-nous	-
6	4173168		Bracket, Switch		Appelez-nous	-
6	4159445		Screw, (2)		Appelez-nous	-
7	4173081		Solenoid		Appelez-nous	-
7	4159470		Screw (2)		Appelez-nous	-
8	4168514		Latch Switch		Appelez-nous	-
8	4173053		Screw (2)		Appelez-nous	-
9	4168522		Insulator (2)		Appelez-nous	-
10	4168560		Solenoid Spring		Appelez-nous	-
11	4159129		Cotter Pin		Appelez-nous	-
12	4173168		Bracket, Harness		Appelez-nous	-
13	3178555		Sleeve, Bulb		Appelez-nous	-
18	4173053		Screw (2)		Appelez-nous	-
18	4159117		Nut (2)		Appelez-nous	-
18	4164366		Latch Switch		Appelez-nous	-
20	3178621		Harness, Wiring (latch Switch)		Appelez-nous	-
20	4168517		Latch Switch (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
