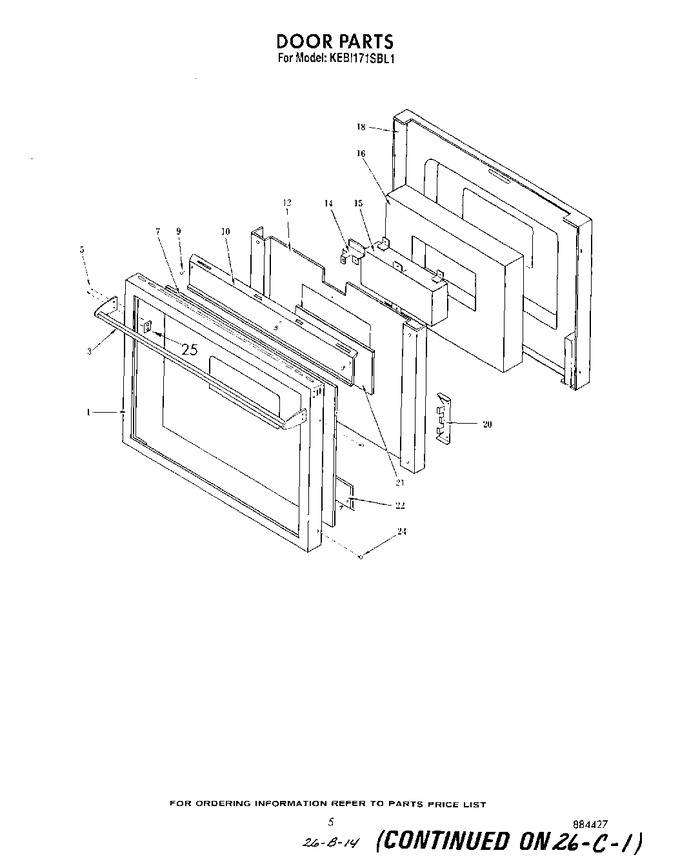

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4164391		Door Frame		Appelez-nous	-
3	4173018		Door Handle		Appelez-nous	-
5	4159330		Screw, No.8-32 X 3/8`` Pfhms		Appelez-nous	-
7	4164241		Door Glass		Appelez-nous	-
9	4168826		Rubber Bumper		Appelez-nous	-
10	4163857		Air Baffle		Appelez-nous	-
12	4169357		Retainer, Insulation		Appelez-nous	-
14	4163852		Bracket, Lock		Appelez-nous	-
15	4173280		Window Pack		Appelez-nous	-
16	4163987		Insulation		Appelez-nous	-
18	4164237		Door Liner		Appelez-nous	-
20	4163855		Glass Mounting Bracket		Appelez-nous	-
21	4164243		Glass Panel		Appelez-nous	-
22	4163859		Air Baffle, Bottom		Appelez-nous	-
24	4168863		Screw, 8a X 3/8`` Pkesms		Appelez-nous	-
25	4164131		Insert (4)		Appelez-nous	-
