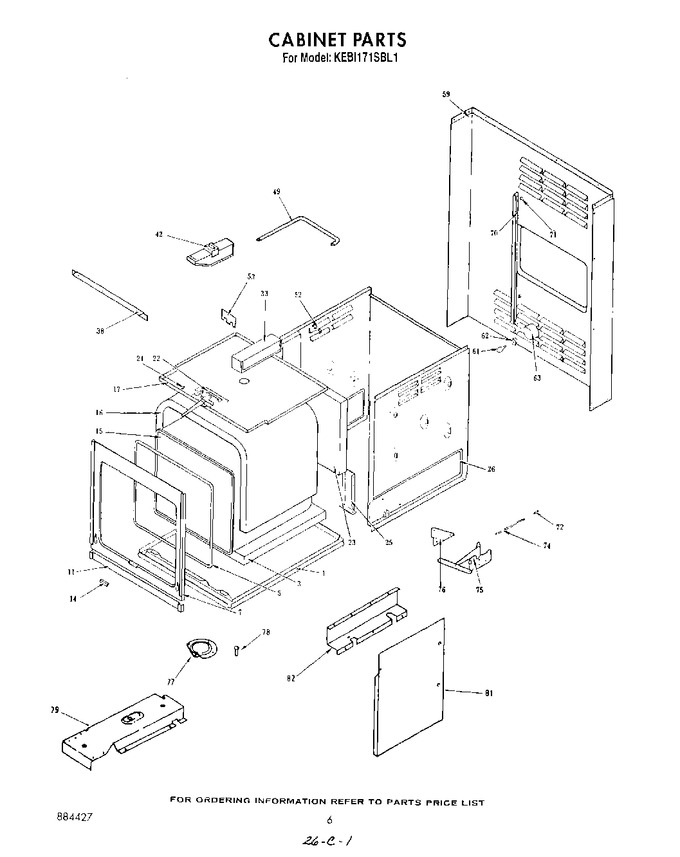

06 - Cabinet , Literature And Optional
07 - Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4163966 | Main Bottom |
|
- | |||||
| 3 | 4164191 | Insulation, Bottom |
|
- | |||||
| 5 | 4168829 | Door Gasket |
|
- | |||||
| 7 | 4163823 | Front Frame |
|
- | |||||
| 11 | 4164196 | Bottom Trim |
|
- | |||||
| 14 | 4167588 | Cover, Seal End |
|
- | |||||
| 16 | 4169310 | Insulation, Top And Sides |
|
- | |||||
| 17 | 4169314 | Top Compartment |
|
- | |||||
| 21 | 4163821 | Knob, Latch Lever |
|
- | |||||
| 23 | 4164192 | Insulation, Rear |
|
- | |||||
| 25 | 4167526 | Rear Anchor |
|
- | |||||
| 26 | 4173055 | Cabinet Side |
|
- | |||||
| 33 | 4168681 | Collector Box |
|
- | |||||
| 38 | 4169336 | Control Frame Support |
|
- | |||||
| 42 | 4163941 | Vent Box |
|
- | |||||
| 49 | 4168494 | Vent Tube |
|
- | |||||
| 52 | 4167593 | Clamp, Conduit |
|
- | |||||
| 53 | 4168242 | Vent Tube Mounting Bracket |
|
- | |||||
| 59 | 4169313 | Cabinet Back |
|
- | |||||
| 61 | 8009 | Bulb, 40 Watt (Replaces: 4173062) |
|
Immediately | $ 18.67 | ||||
| 62 | 4168755 | Socket, Lamp |
|
- | |||||
| 63 | 4167579 | Light Shield |
|
- | |||||
| 70 | 4163760 | Cabinet Support (left) |
|
- | |||||
| 70 | 4163759 | Cabinet Support (right) |
|
- | |||||
| 71 | 4168590 | Spacer |
|
- | |||||
| 72 | 4167599 | Spring, Anchor |
|
- | |||||
| 74 | 4173048 | Door Spring |
|
- | |||||
| 75 | 4167596 | Hinge Assembly |
|
- | |||||
| 76 | 4167598 | Cam Plate (left) |
|
- | |||||
| 76 | 4167597 | Cam Plate (right) |
|
- | |||||
| 77 | 4163883 | Probe Cover |
|
- | |||||
| 78 | 4168863 | Screw, 8a X 3/8`` Pkesms |
|
- | |||||
| 79 | 4163753 | Air Duct (right) |
|
- | |||||
| 79 | 4163752 | Air Duct (left) |
|
- | |||||
| 81 | 4173016 | Extension, Air Duct (left Hand) |
|
- | |||||
| 81 | 4173017 | Extension, Air Duct (right Hand) |
|
- | |||||
| 82 | 978849 | Cleaner, (8oz.) Black Glass |
|
$ 15.82 | |||||
| 82 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 55.47 | ||||
| 82 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 55.47 | ||||
| 82 | 261582 | Grease |
|
- | |||||
| 82 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 63.51 | ||||
| 82 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 82 | WP75614 | Line, Splice (5) (Replaces: 309551) |
|
$ 49.34 | |||||
| 82 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 82 | 261881 | Rotisserie Kit (rck 79) |
|
- | |||||
| 82 | 832985 | Rack, Cooking (bi-level) |
|
- | |||||
| 82 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 51.44 | |||||
| 82 | 242829 | 18 Ga. 80~c Rating (red) |
|
- | |||||
| 82 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 82 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | |||||
| 82 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 82 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 82 | 4173061 | Air Baffle Channel |
|
- | |||||
| 82 | 350806 | 18 Ga. 80~c Rating (yellow) |
|
- | |||||
| 82 | 10875 | Wire (16 Ga. 80 C Blue) |
|
Immediately | $ 20.64 | ||||
| 82 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 82 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 82 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 82 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 82 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 82 | 242826 | 18 Ga. 80~c Rating (white) |
|
- | |||||
| 82 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 82 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 82 | 282831 | 18 Ga. 80~c Rating (red) |
|
- | |||||
| 82 | 242832 | 18 Ga. 80~c Rating (yellow 12 Ga. 150~c Rating) |
|
- | |||||
| 82 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 82 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 82 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 82 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | |||||
| 82 | WP261869 | Citrine White (microwave Liner) (Replaces: 261869) |
|
$ 26.50 | |||||
| 82 | 242860 | Blue Gray |
|
- | |||||
| 82 | 242757 | Paint, Touch-up 1 Oz. (oven Liner) (light Gray) |
|
- | |||||
| 82 | 8212471 | Bronzetone (Replaces: 242756) |
|
Immediately | $ 83.07 | ||||
| 82 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | ||||
| 82 | 261890 | Harvest Gold |
|
- | |||||
| 82 | 285365 | Toast |
|
- | |||||
| 82 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 82 | 786020 | Paint, Pressurized Spray (12 Oz.) (black) |
|
- | |||||
| 82 | 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
$ 57.04 | |||||
| 82 | 350942 | Primer |
|
$ 89.66 | |||||
| 82 | 350941 | Leveler (primer) |
|
- | |||||
| 82 | 261900 | Citrine White 5 Oz. (m/w Liner) |
|
$ 57.04 | |||||
| 82 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 82 | 978883 | Almond |
|
- | |||||
| 82 | 261891 | Harvest Gold |
|
- | |||||
| 82 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 82 | 285368 | Platinum |
|
- | |||||
| 82 | 786032 | Ebony (microwave) |
|
- | |||||
| LIT884427 | List, Repair Parts |
|
- | ||||||
| LIT3177123 | Installation Instructions |
|
- | ||||||
| LIT3177053 | Use And Care Guide |
|
- |
