SELECT A DIAGRAM
02 - Control Panel
03 - Latch
04 - Liner
05 - Door
06 - Cabinet , Literature And Optional

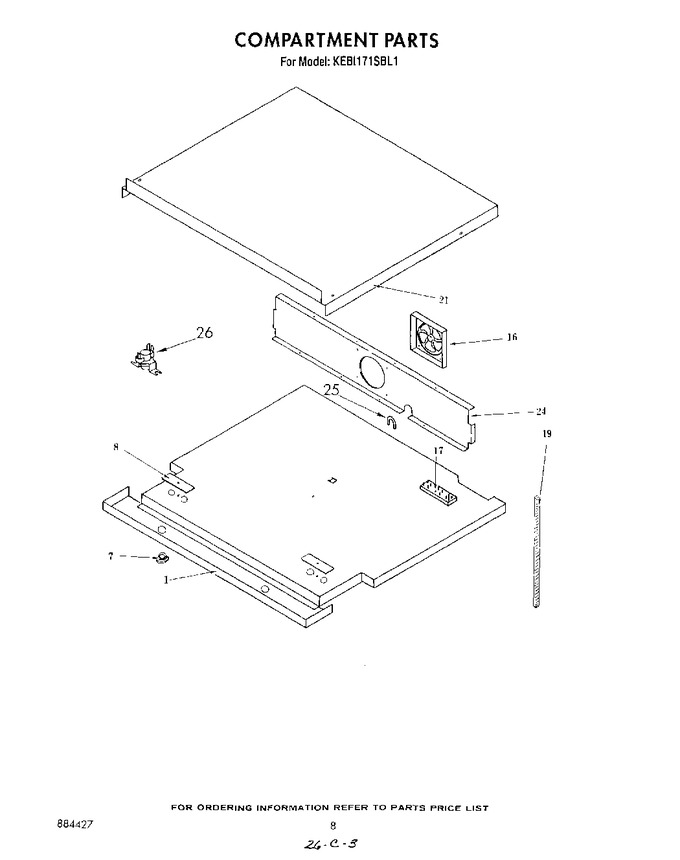

07 - Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4173054 | Sandwich Panel |
|
- | |||||
| 7 | 4173043 | Bushing |
|
- | |||||
| 8 | 4168527 | Hole Cover |
|
- | |||||
| 16 | 4173004 | Blower |
|
- | |||||
| 17 | 4168735 | Terminal Block, Power Supply |
|
- | |||||
| 19 | 4167614 | Conduit, 1/2`` X 56`` |
|
- | |||||
| 21 | 4173276 | Cabinet Top |
|
- | |||||
| 24 | 4173166 | Blower Mounting Panel |
|
- | |||||
| 25 | 4173165 | Bushing, Flexible |
|
- | |||||
| 26 | 4173008 | Switch, Fan |
|
- |
