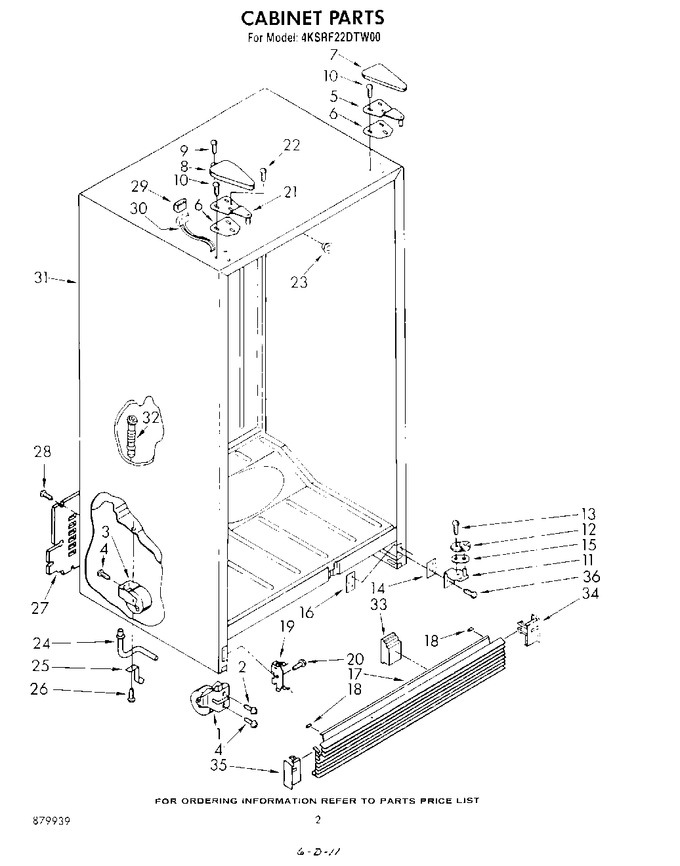

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	981127		Roller, Front (2)		Appelez-nous	-
2	488681		Screw, 5/16-24 X 1		Appelez-nous	-
3	WPW10250570		Roller Assembly, Rear (2)   (Replaces: 981122)				$ 40.17
4	488454		Screw, 1/4-28 X 1/2 (4)		Appelez-nous	-
5	842039		Hinge, Top		Appelez-nous	-
6	836192		Shim, Top Hinge		Appelez-nous	-
7	842010		Hinge Cover (white)		Appelez-nous	-
7	1100173		Hinge Cover (platinum)		Appelez-nous	-
7	1100172		Hinge Cover (toast)		Appelez-nous	-
7	989194		Hinge Cover (almond)		Appelez-nous	-
8	987191		Hinge Cover (white)		Appelez-nous	-
8	989887		Hinge Cover (almond)		Appelez-nous	-
8	1100381		Hinge Cover (toast)		Appelez-nous	-
8	1100382		Hinge Cover (platinum)		Appelez-nous	-
9	488915		Screw, 6-32 X 1/2		Appelez-nous	-
10	488949		Screw, 12-14 X 3 (repair)		Appelez-nous	-
10	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 7.86
11	1115900		Hinge, Bottom R.h.		Appelez-nous	-
11	1115903		Hinge, Bottom (l.h.)		Appelez-nous	-
12	WPW10329686		Door Closer Lower Cam (2)   (Replaces: 1115901)			Immediately	$ 5.43
13	488913		Screw (repair)		Appelez-nous	-
13	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 487983)				$ 7.34
14	836196		Shim, Bottom Hinge		Appelez-nous	-
15	987179		Shim, Door Closer (0.30)		Appelez-nous	-
16	836162		Plate, Tap		Appelez-nous	-
17	1107473		Exterior Grille		Appelez-nous	-
18	1107614		Bumper, Grille (2)		Appelez-nous	-
19	989068		Support, Grille (2)		Appelez-nous	-
20	W11624204		Screw, 8 X 1/2 (2)   (Replaces: 486194)				$ 14.02
21	983608		Hinge Assembly Top, L.s.		Appelez-nous	-
22	WP488234		Screw, 8-32 X 5/32   (Replaces: 488889)				$ 6.74
23	839989		Grommet		Appelez-nous	-
24	841646		Extension Fitting		Appelez-nous	-
25	841648		Clip, Drain		Appelez-nous	-
26	488978		Screw, 8-15 X 3/8		Appelez-nous	-
27	850457		Cover, Unit Compartment		Appelez-nous	-
28	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.67
29	851648		Receptacle, Head		Appelez-nous	-
30	482553		Harness, Wiring (6`` Leads) (includes Illus. 29)		Appelez-nous	-
31	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
32	836068		Drain Fitting		Appelez-nous	-
33	1107271		Insert, Baffle		Appelez-nous	-
34	1107443		Grille, End Cap (r.s)		Appelez-nous	-
35	1107444		Grille, End Cap (l.s.)		Appelez-nous	-
36	488949		Screw (repair)		Appelez-nous	-
36	00489194		Screw, 10-32 X 23/32   (Replaces: 489194)				$ 255.17
