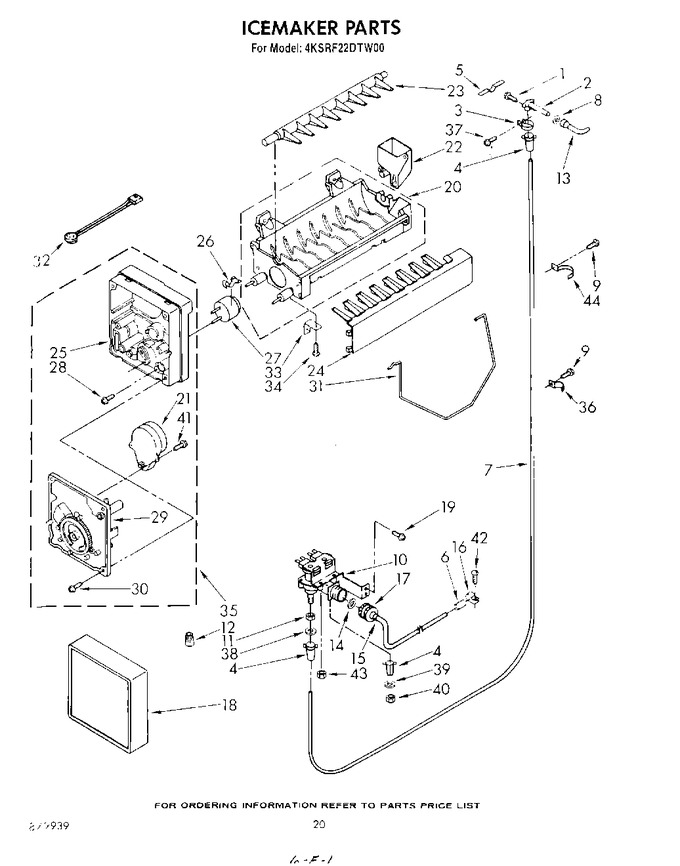

11 - Ice Maker


12 - Air Flow And Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP98165		Screw, 8 X 5/8   (Replaces: 488401)				$ 8.00
2	WP2196157		Fitting, Water Tube   (Replaces: 983990)			Immediately	$ 11.99
3	WP488878		Clamp, Tube   (Replaces: 488878)				$ 11.60
4	4387491		Insert, Tube   (Replaces: 841707)				$ 7.84
5	652604		Clip		Appelez-nous	-
6	WP2158826		Dampener   (Replaces: 836074)				$ 1.73
7	W10823511		Tube Water   (Replaces: 937669)			Immediately	$ 32.41
8	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.93
9	WP489069		Screw, 8 X 1/2 (2)   (Replaces: 488645)			Immediately	$ 7.86
10	4318046		Valve, Solenoid   (Replaces: 628164)			Immediately	$ 92.87
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 10.97
12	227991		Connector Wire		Appelez-nous	-
13	983656		Tube, Inlet Valve		Appelez-nous	-
14	WP16123		Washer   (Replaces: 488292)				$ 7.70
15	627860		Tube, Inlet Valve		Appelez-nous	-
16	510716		Clamp Tube		Appelez-nous	-
17	537588		Nut, Valve		Appelez-nous	-
18	627356		Cover		Appelez-nous	-
19	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488649)				$ 21.16
20	WPW10190929		Mold & Heater (also Order 542638 Silicone Grease)   (Replaces: 627997)				$ 233.15
21	W10190935		Motor   (Replaces: 627811)			Immediately	$ 110.07
22	WP628356		Bearing & Inlet   (Replaces: 627791)				$ 51.19
23	WP627843		Ejector   (Replaces: 627843)				$ 83.60
24	WP2182124		Ice Striper   (Replaces: 627788)				$ 86.05
25	WP2195914		Support   (Replaces: 627790)				$ 104.57
26	WP2315522		Retainer, Thermostat (2)   (Replaces: 627796)				$ 11.05
27	WP627985		Thermostat (also Order 542639 Cement Alumilastic)   (Replaces: 627985)				$ 109.18
28	489258		Screw, 10-32 X 49/64		Appelez-nous	-
29	W10190935		Module, Assembly   (Replaces: 628135)			Immediately	$ 110.07
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
31	W11807379		Shut Off Arm   (Replaces: 627913)			Immediately	$ 60.20
32	WP628172		Harness, Wiring   (Replaces: 627906)				$ 105.06
33	WP2256087		Bracket   (Replaces: 627915)				$ 93.00
34	00489128		Screw, 8-32 X 27/64   (Replaces: 489128)				$ 859.97
35	W10190935		Module Assembly (includes Items 21 25, 28, 29, & 30)   (Replaces: 483042)			Immediately	$ 110.07
36	836472		Tube, Clamp		Appelez-nous	-
37	WP965173		Screw 8 X 3/8   (Replaces: 487415)			Immediately	$ 10.72
38	488794		``o`` Ring		Appelez-nous	-
39	00753257		``o`` Ring   (Replaces: 488819)			Immediately	$ 295.49
40	488795		Nut		Appelez-nous	-
41	489136		Screw, (2) 3-24 X 3/8				$ 10.29
42	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
43	1108005		Nut, Compression		Appelez-nous	-
44	WP488366		Clamp, Tube   (Replaces: 488366)				$ 11.18
