Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	520965		Screw, Support Ladder				$ 29.86
3	1107601		Shelfladder (2)		Appelez-nous	-
4	488357		Screw, 8 X 1-1/4		Appelez-nous	-
4	488623		Screw, (repair) 10 X 1 1/4		Appelez-nous	-
5	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
5	488980		Screw (repair)		Appelez-nous	-
6	1107967		Shelf, Stud		Appelez-nous	-
8	1107968		Shelf, Stud		Appelez-nous	-
10	937513		Stud Water Reservoir		Appelez-nous	-
11	1107265		Shelf Gasket, Glass		Appelez-nous	-
12	521878		Stud		Appelez-nous	-
13	1107061		Shelf, Cantilever		Appelez-nous	-
14	1107073		Shelf Trim, Cantilever		Appelez-nous	-
15	1107065		Glass, Cantilever Shelf		Appelez-nous	-
16	1107069		Reflector, Cantilever		Appelez-nous	-
17	1107009		Frame, Meat & Crisper		Appelez-nous	-
18	1107290		Glass, Crisper & Meat Cover		Appelez-nous	-
19	1107481		Gasket, Rear (2)		Appelez-nous	-
21	1107875		Pan Crisper		Appelez-nous	-
26	1107157		Front Cover, Crisper		Appelez-nous	-
27	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 7.79
27	488132		Screw (repair)		Appelez-nous	-
29	1107876		Pan, Meat		Appelez-nous	-
32	938572		Cover Reservoir Lens		Appelez-nous	-
33	1107433		Frame-utility, Cantilever		Appelez-nous	-
34	1107270		Glass, Cantilever Shelf		Appelez-nous	-
35	1107592		Trim, Frame		Appelez-nous	-
36	1107340		Reflector, Glass Shelf		Appelez-nous	-
37	1107081		Roll Out Shelf, Cantilever		Appelez-nous	-
38	1107085		Frame, Cantilever Rollout		Appelez-nous	-
39	1107089		Glass, Rollout Shelf		Appelez-nous	-
40	1107073		Trim, Shelf Front		Appelez-nous	-
41	1107642		Reflector, Glass Shelf Rollout		Appelez-nous	-
42	1107197		Trim, Frame Crisper & Meat		Appelez-nous	-
43	1107634		Reflector, Glass		Appelez-nous	-
44	1107181		Front, Cover Meat Pan		Appelez-nous	-
45	1107305		Pan Gasket, Front		Appelez-nous	-
47	1107877		Tray, Utility		Appelez-nous	-
48	1107437		Front, Utility Tray		Appelez-nous	-
50	1107388		Egg Container, Top		Appelez-nous	-
51	1107384		Egg Container, Bottom		Appelez-nous	-

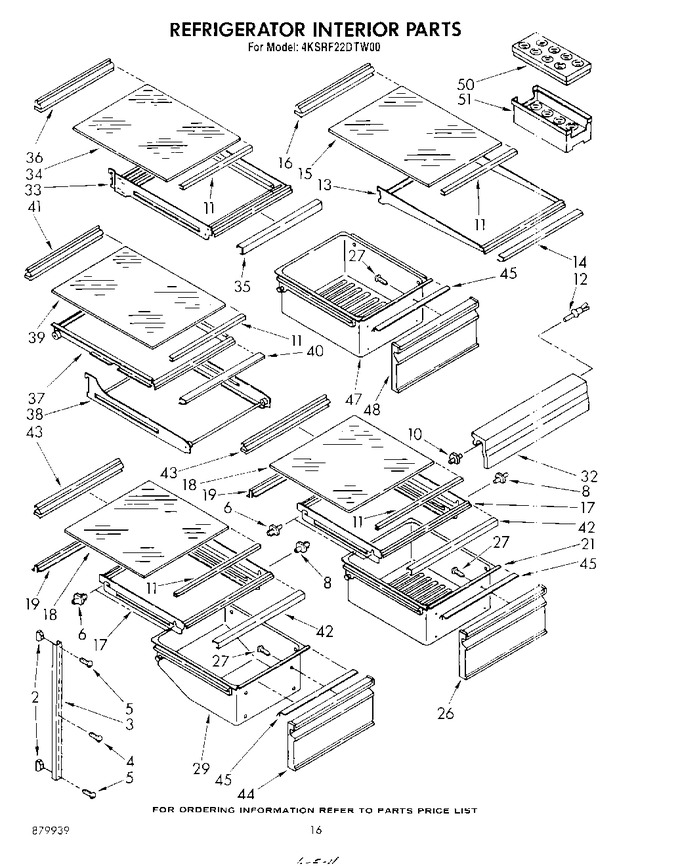

    View Diagram in Separate Window       Print Part List
